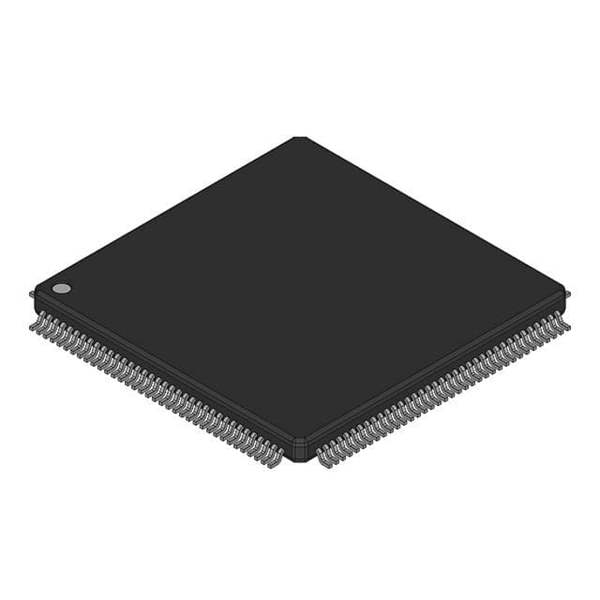

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features CPU32 Microprocessor IC series 1 Core, 32-Bit 16MHz 144-LQFP (20x20)
Manufacturer Freescale Semiconductor - NXP
Series M683xx
Package Bulk
Core Processor CPU32
Speed 16MHz
Operating Temperature Range -40°C ~ 85°C (TA)
Package 144-LQFP
Case / Package 144-LQFP (20x20)
Family Name MC683
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 926190-MC68340CAG16E
Ultra Librarian 3D Model Ultra Librarian MC68340CAG16E CAD Model

Description

The CPU32 Microprocessor IC is a high-performance integrated circuit that comes from the M683xx series. It has a core processor of CPU32 and a speed of 16MHz.

  • Series: M683xx
  • Core Processor: CPU32
  • Speed: 16MHz
  • Packaging: Bulk
  • Units per Package: One
  • Supply and Demand Status: Balanced
  • MSL Level: 3 (168 Hours)
  • REACH Status: Unaffected
