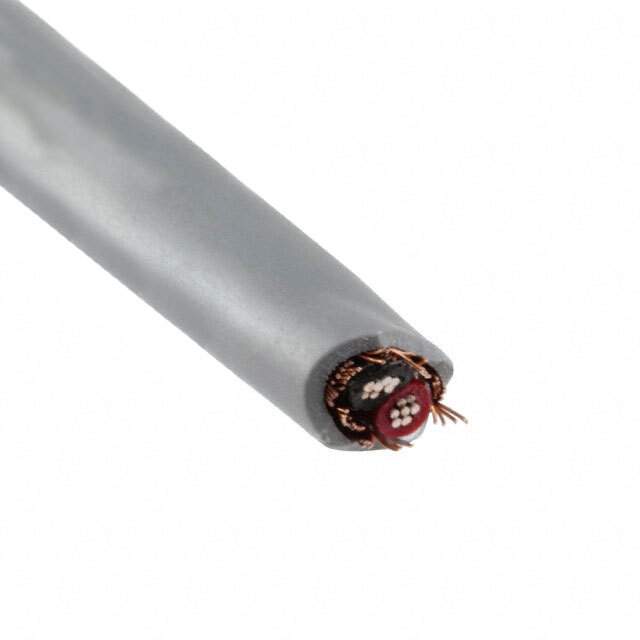

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Cables, Wires
Manufacturer Alpha Wire
Cable Type Multi-Conductor
Number of Conductors 2
Wire Gauge 20 AWG
Conductor Strand 7/28
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.205" (5.21mm)
Shield Type Braid
Length 100.0' (30.5m)
Jacket Color Slate
Voltage 300V
Operating Temperature Range -20°C ~ 80°C
Usage Communication, Control
Jacket (Insulation) Thickness 0.020" (0.51mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Material Copper, Bare
Shield Coverage 75%
Win Source Part Number 760620-1741C SL005
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1741C SL005 CAD Model

Description

The Alpha Wire 760620-1741C SL005 is a 20 AWG multi-conductor cable with two conductors.

  • Conductors: 2
  • Length: 100.0' (30.5m)
  • Voltage Rating: 300V
  • Applications: Communication and Control
  • Operating Temperature: -20°C to 80°C
  • Conductor Material: Copper, Tinned
  • Strand: 7/28
  • Insulation Material: Poly-Vinyl Chloride (PVC)
  • Jacket Material: Poly-Vinyl Chloride (PVC)
  • Insulation/Jacket Thickness: 0.020" (0.51mm)
  • Shield Material: Copper, Bare
  • Shield Coverage: 75%
  • Shield Type: Braid
  • Jacket Color: Slate
  • Supply and Demand Status: Limited
