Same model may have multiple batches, images only for reference.

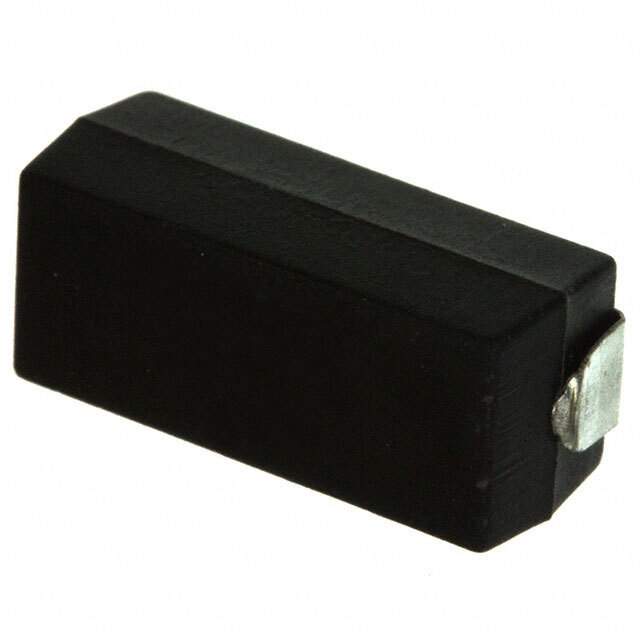

S3-6K8F1 Real Image
Same model may have multiple batches, images only for reference.

S3-6K8F1

Part No S3-6K8F1
Manufacturer Riedon
Catalog Chip Resistor - Surface Mount
Description RES SMD 6.8K OHM 1% 3W 6327  /  6.8 kOhms ±1% 3W Chip Resistor 6327 J-Lead Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety Wirewound
Datasheet
S3-6K8F1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Riedon
Series S
Package Tape & Reel
Resistance 6.8 kOhms
Tolerance ±1%
Power (Watts) 3W
Composition Wirewound
Features Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
Temperature Coefficient ±20ppm/°C
Temperature Range - Operating -55°C ~ 275°C
Package / Case 6327 J-Lead
Dimension 0.626" L x 0.272" W (15.90mm x 6.90mm)
Height - Seated (Max) 0.268" (6.80mm)
Number of Terminations 2
Other Names S-3-6800FCT,S-3-6800FDKR,696-1233-1,696-1233-2,S-3-6800FCT,696-1233-6,S-3-6800FDKR,S-3 6800 OHM 1%,S-3-6800FTR,S-3-6800FTR,S36800OHM1
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1237203-S3-6K8F1
Ultra Librarian 3D Model Ultra Librarian S3-6K8F1 CAD Model

Description

The 1237203-S3-6K8F1 resistor is a surface mount chip resistor from Riedon's S series.

  • Resistance: 6.8 kOhms
  • Power Rating: 3W
  • Type: Wirewound
  • Tolerance: ±1%
  • Features: Flameproof, moisture-resistant, pulse-withstanding, and safe
  • Packaging: Tape and reel
  • Package/Case: 6327 J-lead
  • Terminations: Two
  • Temperature Coefficient: ±20ppm/°C
  • Operating Temperature: -55°C to 275°C
  • Dimensions: 0.626" L x 0.272" W (15.90mm x 6.90mm)
  • REACH: Affected
  • ECCN: EAR99
  • Manufacturer: Riedon
