Same model may have multiple batches, images only for reference.

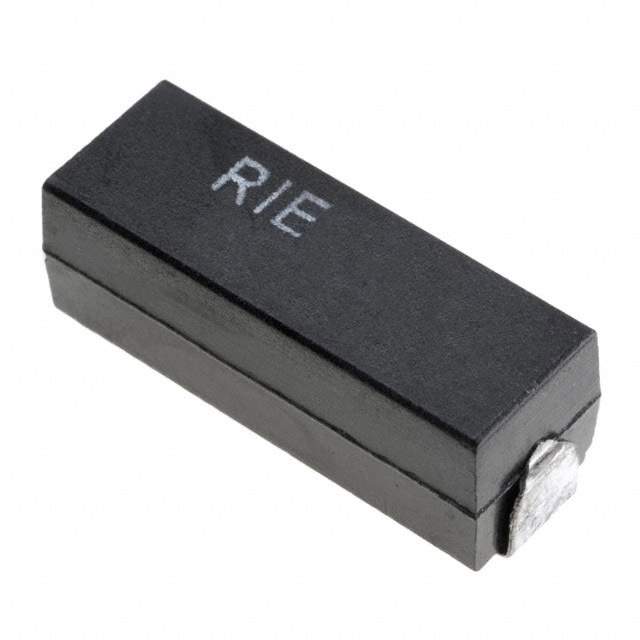

S5-68RF1 Real Image
Same model may have multiple batches, images only for reference.

S5-68RF1

Part No S5-68RF1
Manufacturer Riedon
Catalog Chip Resistor - Surface Mount
Description RES SMD 68 OHM 1% 4W 8230 / 68 Ohms ±1% 4W Chip Resistor 8230 J-Lead Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety Wirewound
Datasheet
S5-68RF1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Riedon
Series S
Package Tape & Reel
Resistance 68 Ohms
Tolerance ±1%
Power (Watts) 4W
Composition Wirewound
Features Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
Temperature Coefficient ±20ppm/°C
Temperature Range - Operating -55°C ~ 275°C
Package / Case 8230 J-Lead
Dimension 0.819" L x 0.296" W (20.80mm x 7.50mm)
Height - Seated (Max) 0.319" (8.10mm)
Number of Terminations 2
Other Names S-5-68FDKR,S-5 68 OHM 1%,S-5-68FDKR,696-1267-2,696-1267-1,S568OHM1,S-5-68FTR,696-1267-6,S-5-68FTR,S-5-68FCT,S-5-68FCT
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1237201-S5-68RF1
Ultra Librarian 3D Model Ultra Librarian S5-68RF1 CAD Model

Description

The S-5-68RF1 is a chip resistor with a resistance of 68 Ohms manufactured by Riedon.

  • Resistance: 68 Ohms
  • Series: S series
  • Power Rating: 4W
  • Resistor Type: Wirewound
  • Tolerance: ±1%
  • Temperature Coefficient: ±20ppm/°C
  • Mounting: Surface Mount
  • Features: Flame Proof, Moisture Resistant, Pulse Withstanding, and Safety Compliant
  • Supply and Demand Status: Unlimited
  • Manufacturer: Riedon
