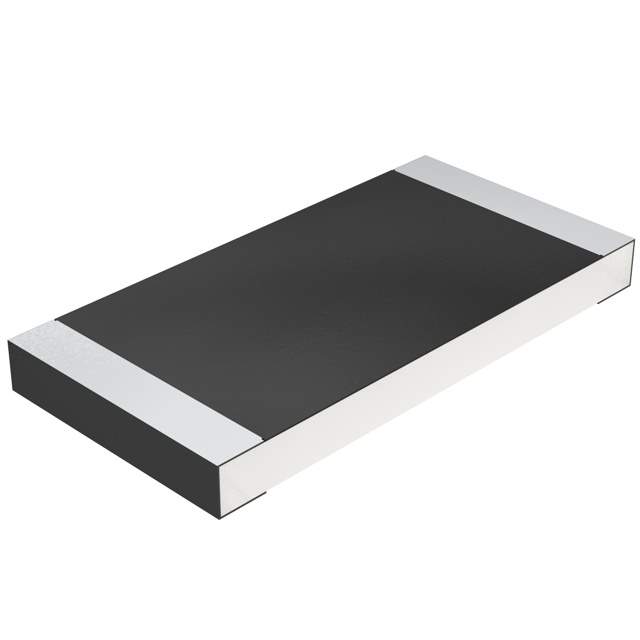

CRCW25122K20JNEH Real Image
Same model may have multiple batches, images only for reference.

CRCW25122K20JNEH

Part No CRCW25122K20JNEH
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 2.2K OHM 5% 1W 2512 / 2.2 kOhms ±5% 1W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200 Thick Film
Datasheet
CRCW25122K20JNEH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Dale
Series CRCW
Package Tape & Reel (TR)
Resistance 2.2 kOhms
Tolerance ±5%
Power (Watts) 1W
Composition Thick Film
Features Automotive AEC-Q200
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Ratings AEC-Q200
Dimension 0.248" L x 0.124" W (6.30mm x 3.15mm)
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
Base Product Number CRCW2512
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Standard Package 4,000
Win Source Part Number 976621-CRCW25122K20JNEH
Ultra Librarian 3D Model Ultra Librarian CRCW25122K20JNEH CAD Model

Description

This CRCW electronic component is a chip resistor with a resistance of 2.2 kOhms and a power (Watts) of 1W.

  • Resistance: 2.2 kOhms
  • Power (Watts): 1W
  • Temperature Coefficient: ±200ppm/°C
  • Tolerance: ±5%
  • Automotive AEC-Q200: Yes
  • Temperature Range - Operating: -55°C ~ 155°C
  • Package / Case: 2512 (6432 Metric)
  • Supplier Device Package: 2512
