Same model may have multiple batches, images only for reference.

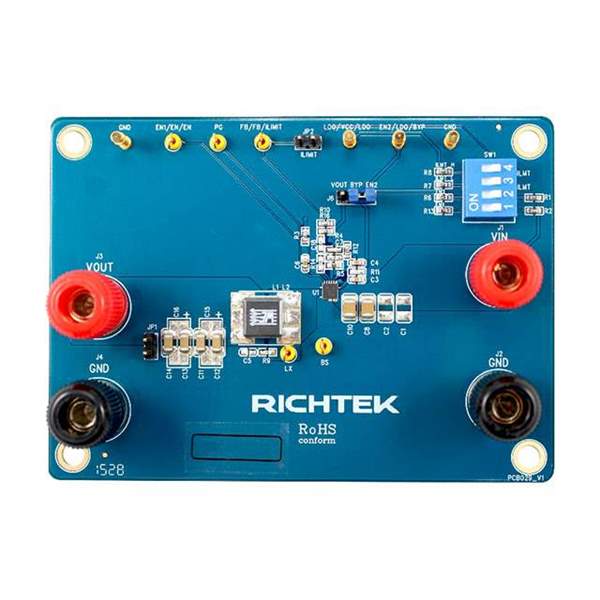

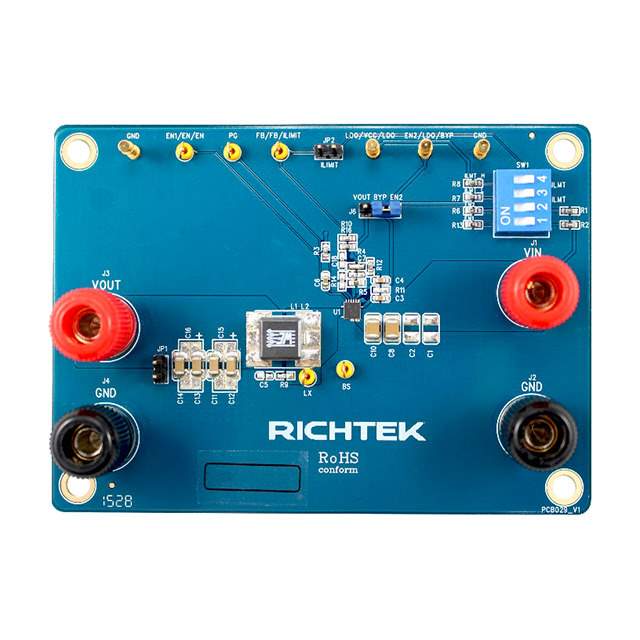

EVB_RT7238BGQUF Real Image
Same model may have multiple batches, images only for reference.

EVB_RT7238BGQUF

Part No EVB_RT7238BGQUF
Manufacturer Richtek USA Inc.
Catalog Evaluation Boards - DC/DC & AC/DC (Off - Line)SMPS
Description EVAL MODULE FOR RT7238BGQUF
Datasheet
EVB_RT7238BGQUF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer Richtek USA Inc.
Series ACOT
Main Purpose DC/DC, Step Down with LDO
Outputs and Type 2, Non-Isolated
Voltage - Output 3.3V, 3.3V
Output Current 8A, 70mA
Voltage - Input 8 V ~ 23 V
Regulator Topology Buck
Frequency - Switching 500kHz
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part RT7238B
Win Source Part Number 793404-EVB_RT7238BGQUF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1
Ultra Librarian 3D Model Ultra Librarian EVB_RT7238BGQUF CAD Model

Description

The Richtek USA Inc. EVB_RT7238BGQUF is a development board from Richtek USA Inc.

  • Board Type: Fully populated
  • IC: RT7238B
  • Output Type: Two non-isolated outputs
  • Regulator Topology: Buck
  • Voltage Input: 8V to 23V
  • Output Current: 8A, 70mA
  • Application: DC/DC, step-down with LDO
  • Switching Frequency: 500kHz
  • Quantity Per Package: 1 board(s)
