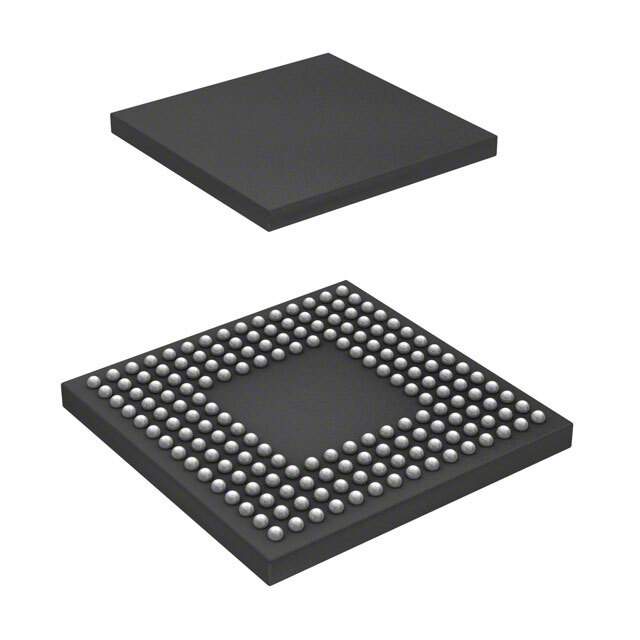

R5F5631ECDBG#U0 Real Image1 R5F5631ECDBG#U0 Real Image2
Same model may have multiple batches, images only for reference.
R5F5631ECDBG#U0 Real Image1 R5F5631ECDBG#U0 Real Image2
R5F5631ECDBG#U0 Real Image1 R5F5631ECDBG#U0 Real Image2
Same model may have multiple batches, images only for reference.

R5F5631ECDBG#U0

Part No R5F5631ECDBG#U0
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 32BIT 2MB FLASH 176LFBGA / RX series Microcontroller IC 32-Bit Single-Core 100MHz 2MB (2M x 8) FLASH 176-LFBGA (13x13)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Renesas Electronics America Inc
Series RX600
Package Tray
Product Status Not For New Designs
Core Processor RX
Core Size 32-Bit Single-Core
Speed 100MHz
Connectivity CANbus, EBI/EMI, I²C, LINbus, SCI, SPI, USB
Peripherals DMA, LVD, POR, PWM, WDT
Number of I/O 133
Program Memory Size 2MB (2M x 8)
Program Memory Type FLASH
EEPROM Size 32K x 8
RAM Size 128K x 8
Supply Voltage - Operating 2.7V ~ 3.6V
Data Converters A/D 8x10b, 21x12b; D/A 2x10b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 176-LFBGA
Supplier Device Package 176-LFBGA (13x13)
Base Product Number R5F5631
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Standard Package 152
Win Source Part Number 1211961-R5F5631ECDBG#U0
Ultra Librarian 3D Model Ultra Librarian R5F5631ECDBG#U0 CAD Model

Description

The R5F5631ECDBG#U0 microcontroller is a member of the RX600 series of integrated circuits (ICs), which are embedded microcontrollers.

  • Series: RX600
  • Core Processor: RX Core
  • Speed: 100MHz
  • Core Size: 32-Bit Single-Core
  • Package Type: 176-LFBGA
  • Supplier Device Package: 176-LFBGA (13x13)
  • Operating Temperature: -40°C to 85°C (TA)
  • Operating Supply Voltage: 2.7V to 3.6V
  • Program Memory Size: 2MB (2M x 8)
  • Program Memory Type: FLASH
  • Peripherals: DMA, LVD, POR, PWM, WDT
  • Data Converters: A/D 8x10b, 21x12b and D/A 2x10b
  • Connectivity: CANbus, EBI/EMI, I2C, LINbus, SCI, SPI
  • I/Os: 133
  • EEPROM Size: 32K x 8
  • RAM Size: 128K x 8
