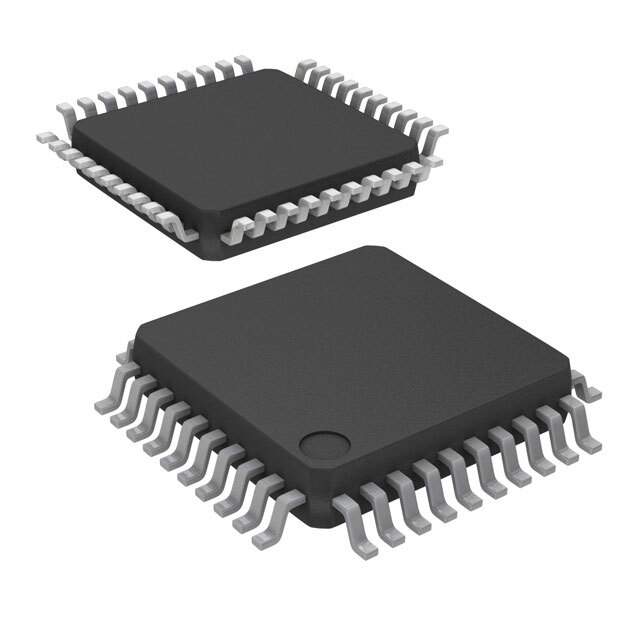

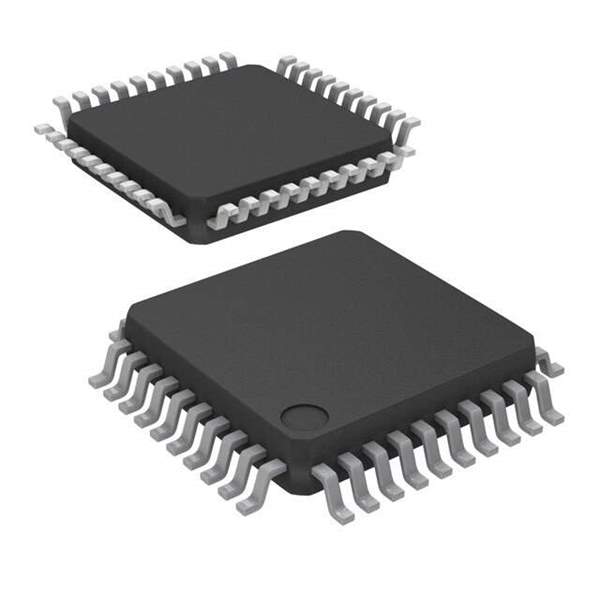

R5F21134FP#W4 Real Image
Same model may have multiple batches, images only for reference.

R5F21134FP#W4

Part No R5F21134FP#W4
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 16KB FLASH 32LQFP / R8C series Microcontroller IC 16-Bit 20MHz 16KB (16K x 8) FLASH 32-LQFP (7x7)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Renesas Electronics America Inc
Series R8C/1x/13
Package Tape & Reel (TR)
Product Status Not For New Designs
Core Processor R8C
Core Size 16-Bit
Speed 20MHz
Connectivity SIO, UART/USART
Peripherals LED, POR, Voltage Detect, WDT
Number of I/O 22
Program Memory Size 16KB (16K x 8)
Program Memory Type FLASH
EEPROM Size 4K x 8
RAM Size 1K x 8
Supply Voltage - Operating 2.7V ~ 5.5V
Data Converters A/D 12x10b
Oscillator Type Internal
Temperature Range - Operating -20°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 32-LQFP
Supplier Device Package 32-LQFP (7x7)
Base Product Number R5F21134
Standard Package 1,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 1263670-R5F21134FP#W4
Ultra Librarian 3D Model Ultra Librarian R5F21134FP#W4 CAD Model

Description

The R5F21134FP#W4 is a microcontroller from the R8C/1x/13 series of Renesas Electronics America Inc.

  • Core Processor: 16-bit
  • Speed: 20MHz
  • Program Memory Size: 16KB (16K x 8)
  • RAM Size: 1K x 8
  • I/Os: 22
  • Connectivity: SIO and UART/USART
  • Peripherals: LED, POR, voltage detect, and WDT
  • Oscillator Type: internal
  • Package: 32-LQFP
  • Operating Temperature: -20°C to 85°C
  • Supply Voltage: 2.7V to 5.5V
  • ECCN: EAR99
  • REACH: unaffected
