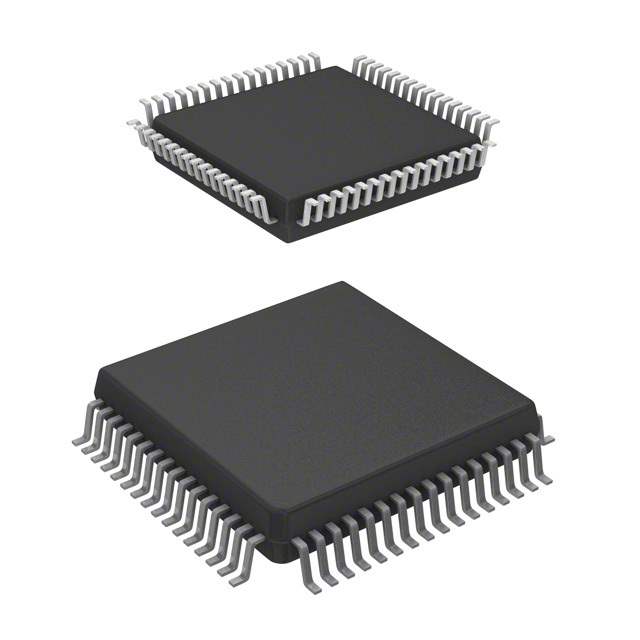

HD64F3684HV Real Image
Same model may have multiple batches, images only for reference.

HD64F3684HV

Part No HD64F3684HV
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 32KB FLASH 64QFP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Renesas Electronics America
Packaging Tray
Status Active
Core Processor H8/300H
Part Core Size 16-Bit
Speed(Frequency) 20MHz
Number of I/O 45
Program Memory Size 32KB (32K x 8)
Program Memory Type FLASH
Data RAM Size 4K x 8
Supply Voltage - Operating 3 V to 5.5 V
Data Converters A/D 8x10b
Temperature Range - Operating -20°C to 75°C (TA)
Case / Package 64-QFP (14x14)
Win Source Part Number 068000-HD64F3684HV
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1
Ultra Librarian 3D Model Ultra Librarian HD64F3684HV CAD Model

Description

The Renesas Electronics America HD64F3684HV is a 16-bit microcontroller with a core processor of H8/300H.

  • Core Processor: H8/300H
  • I/O Ports: 45
  • Program Memory Size: 32KB (32K x 8)
  • Program Memory Type: FLASH
  • Data Converters: A/D 8x10b
  • Speed: 20MHz
  • Supply Voltage: 3 V to 5.5 V
  • Data RAM Size: 4K x 8
  • Package: 64-QFP (14x14)
  • Operating Temperature: -20°C to 75°C (TA)
  • Supply and Demand: Balanced
