Same model may have multiple batches, images only for reference.

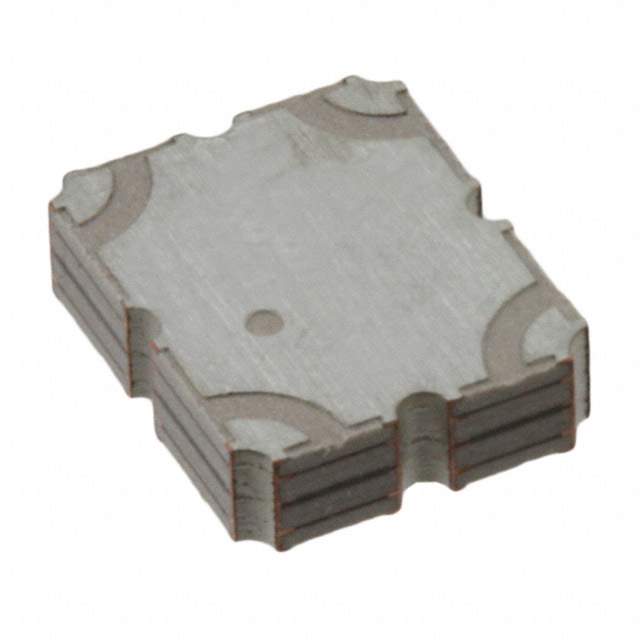

X3C26P1-30S Real Image
Same model may have multiple batches, images only for reference.

X3C26P1-30S

Part No X3C26P1-30S
Manufacturer Anaren
Catalog RF Directional Coupler
Description RF DIR COUPLER 2.3GHZ-2.9GHZ SMD  /  RF Directional Coupler LTE, WiMAX 2.3GHz ~ 2.9GHz 30dB 200W 2520 (6450 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Directional Coupler
Mfr TTM Technologies, Inc.
Series Xinger III®
Package Tape & Reel
Coupler Type Standard
Frequency 2.3GHz ~ 2.9GHz
Coupling Factor 30dB
Applications LTE, WiMAX
Insertion Loss 0.1dB
Power - Max 200W
Return Loss 24.9dB
Package / Case 2520 (6450 Metric)
Supplier Device Package SMD
Base Product Number X3C26P1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8517.79.0000
Other Names X3C26P130S,X3C26P1-30S REEL 30D,1173-1115-6,1173-1115-1,1173-1115-2
Standard Package 2,000
Win Source Part Number 1223255-X3C26P1-30S
Ultra Librarian 3D Model Ultra Librarian X3C26P1-30S CAD Model

Description

The Xinger III® RF Directional Coupler from TTM Technologies, Inc. is a high-performance coupler designed for LTE and WiMAX applications.

  • Frequency Range: 2.3GHz to 2.9GHz
  • Maximum Power: 200W
  • Coupler Type: Standard
  • Coupling Factor: 30dB
  • Insertion Loss: 0.1dB
  • Package/Case Size: 2520 (6450 Metric)
  • Form: SMD
  • Return Loss: 24.9dB
  • Isolation: Not Specified
  • REACH: Unaffected
  • ECCN: EAR99
