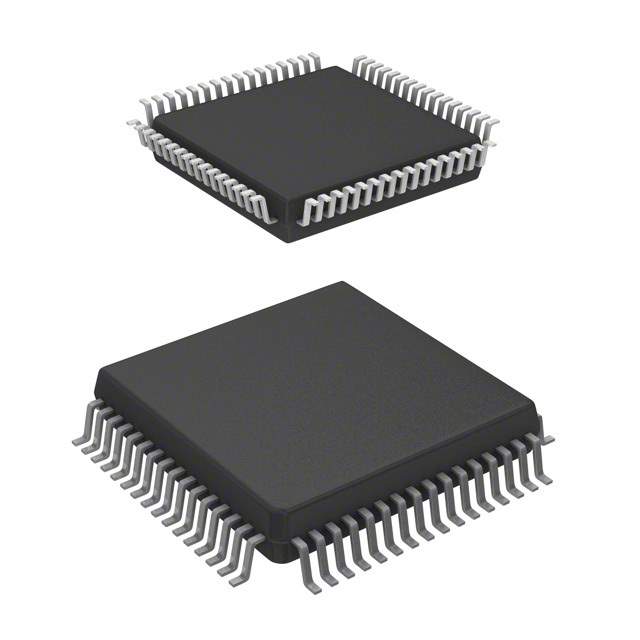

HD64F3684GHV Real Image
Same model may have multiple batches, images only for reference.

HD64F3684GHV

Part No HD64F3684GHV
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 32KB FLASH 64QFP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Renesas Electronics America
Series H8 H8/300H Tiny
Packaging Tray
Core Processor H8/300H
Core Size 16-Bit
Speed 20MHz
Connectivity I2C, SCI
Peripherals LVD, POR, PWM, WDT
Number of I/O 45
Program Memory Size 32KB (32K x 8)
Program Memory Type FLASH
RAM Size 4K x 8
Supply Voltage 3 V ~ 5.5 V
Data Converters A/D 8x10b
Oscillator Type Internal
Operating Temperature Range -20°C ~ 75°C (TA)
Package 64-BQFP
Manufacturer Package 64-QFP (14x14)
Manufacturer Homepage www.renesas.com
Win Source Part Number 753467-HD64F3684GHV
Popularity Medium
Supply and Demand Status Limited
Quantity per package 84
Family Name HD64F3684
Introduction Date March 20, 2002
ECCN EAR99
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian HD64F3684GHV CAD Model

Description

The Renesas Electronics America HD64F3684GHV is a 16-bit microcontroller with a core processor of H8/300H.

  • Core Processor: H8/300H
  • Speed: 20MHz
  • Program Memory Size: 32KB (32K x 8)
  • Program Memory Type: FLASH
  • RAM Size: 4K x 8
  • Oscillator Type: Internal
  • Supply Voltage: 3 V ~ 5.5 V
  • I/Os: 45
  • Peripherals: LVD, POR, PWM, WDT
  • Applications: Integrated circuits (ICs)
  • Package: 64-QFP (14x14)
  • ECCN: EAR99
  • EOL Date: 2025 (estimated)
  • Popularity: Medium
  • Supply and Demand: Limited
