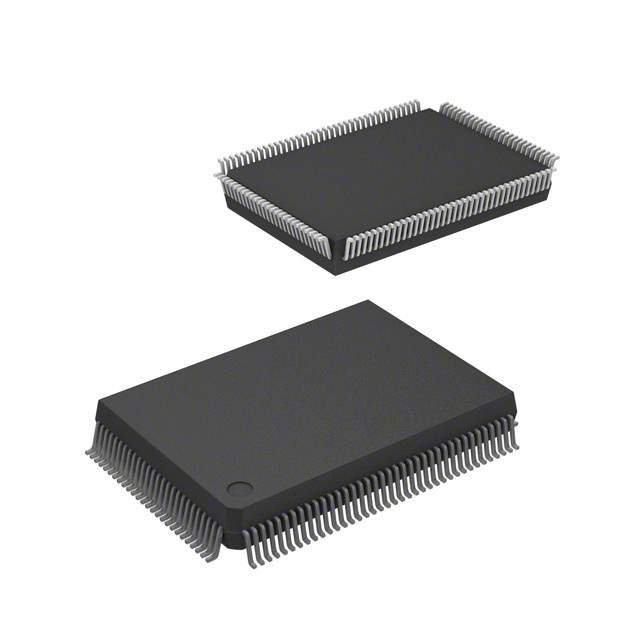

DF2638F20V Real Image
Same model may have multiple batches, images only for reference.

DF2638F20V

Part No DF2638F20V
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 256KB FLASH 128QFP / H8S/2600 H8® H8S/2600 Microcontroller IC 16-Bit 20MHz 256KB (256K x 8) FLASH 128-QFP (14x20)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded>Microcontrollers
Mfr Renesas Electronics America
Series H8® H8S/2600
Package Tray
Product Status Obsolete
Core Processor H8S/2600
Core Size 16-Bit
Speed 20MHz
Connectivity CANbus, SCI, SmartCard
Peripherals Motor Control PWM, POR, PWM, WDT
Number of I/O 72
Program Memory Size 256KB (256K x 8)
Program Memory Type FLASH
EEPROM Size -
RAM Size 16K x 8
Voltage - Supply (Vcc/Vdd) 4.5V ~ 5.5V
Data Converters A/D 12x10b; D/A 2x8b
Oscillator Type Internal
Temperature Range - Operating -20°C ~ 75°C (TA)
Mounting Type Surface Mount
Package / Case 128-BFQFP
Supplier Device Package 128-QFP (14x20)
Base Product Number DF2638
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Standard Package 72 pcs
Win Source Part Number 1380996-DF2638F20V
Ultra Librarian 3D Model Ultra Librarian DF2638F20V CAD Model

Description

The H8S/2600 series from Renesas Electronics America is a range of embedded microcontrollers.

  • Core Processor: 16-bit
  • Processor Speed: 20MHz
  • Connectivity: CANbus, SCI, and SmartCard
  • Peripherals: Motor Control PWM, POR, PWM, and WDT
  • Number of I/O Pins: 72
  • Program Memory Size: 256KB
  • Package: Tray
  • Operating Temperature: -20°C to 75°C
