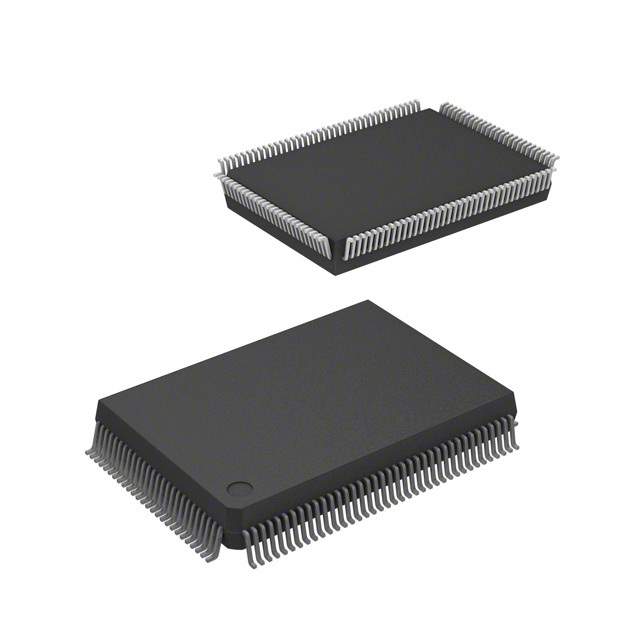

D12322RVF20V Real Image
Same model may have multiple batches, images only for reference.

D12322RVF20V

Part No D12322RVF20V
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT ROMLESS 128QFP / H8S/2000 H8® H8S/2300 Microcontroller IC 16-Bit 20MHz ROMless 128-QFP (14x20)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded>Microcontrollers
Manufacturer Renesas Electronics America Inc
Packaging Tray
Core Processor H8S/2000
Core Size 16-Bit
Speed 20MHz
Connectivity SCI, SmartCard
Peripherals DMA, POR, PWM, WDT
Number of I/O 86
Program Memory Type ROMless
RAM Size 8K x 8
Voltage - Supply (Vcc/Vdd) 2.7V ~ 3.6V
Data Converters A/D 8x10b; D/A 2x8b
Oscillator Type Internal
Temperature Range - Operating -20°C ~ 75°C
Mounting Surface Mount
Case / Package 128-BFQFP
Supplier Device Package 128-QFP (14x20)
Base Product Number D12322
RoHS Status ROHS3 Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Standard Package 1
Win Source Part Number 1318664-D12322RVF20V
Ultra Librarian 3D Model Ultra Librarian D12322RVF20V CAD Model

Description

The Renesas Electronics America Inc H8S/2000 microcontroller is an integrated circuit designed for use in embedded systems.

  • Core Size: 16-bit
  • Speed: 20MHz
  • Package: 128-QFP (14x20)
  • Temperature Range: -20°C to 75°C
  • Connectivity: SCI and SmartCard
  • Peripherals: DMA, POR, PWM, and WDT
  • I/O Pins: 86
  • RAM: 8K x 8
  • Data Converters: A/D 8x10b; D/A 2x8b
  • Oscillator: internal
  • Voltage Supply Range: 2.7V to 3.6V
  • ROHS3 compliant: true
  • REACH: unaffected
