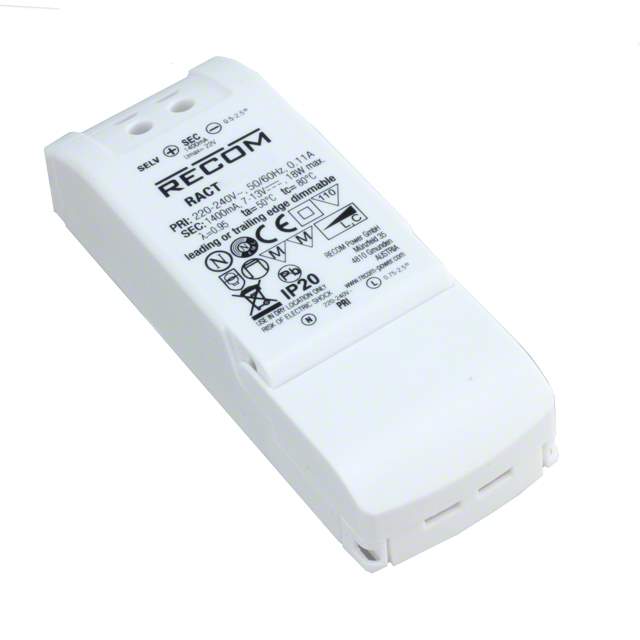

RACT12-500 Real Image
Same model may have multiple batches, images only for reference.

RACT12-500

Part No RACT12-500
Manufacturer Recom Power
Catalog PMIC - LED Drivers
Description LED SUPPLY CC AC/DC 12W 12-24V / 500mA 12 ~ 24V Constant Current LED Driver AC DC Converter Topology 1 Output
Datasheet
RACT12-500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>LED Drivers
Mfr Recom Power
Series RACT12 (12W)
Package Box
Type Constant Current
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 198VAC
Voltage - Input (Max) 264VAC
Voltage - Output 12 ~ 24V
Current - Output (Max) 500mA
Power (Watts) 12 W
Voltage - Isolation 3.75 kV
Dimming Triac
Features OCP, OTP, OVP, SCP
Ratings IP20
Temperature Range - Operating -20°C ~ 50°C
Efficiency 81%
Termination Style Screw Terminal
Dimension 4.29" L x 1.57" W x 0.87" H (109.0mm x 40.0mm x 22.0mm)
Approval Agency CE
Mounting Type Chassis Mount
Weight 0.154 lb (69.85 g)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 20001091,945-3059
Standard Package 10
Win Source Part Number 999269-RACT12-500
Ultra Librarian 3D Model Ultra Librarian RACT12-500 CAD Model

Description

The RACT12-500 LED driver is a 12 W constant current type driver with a voltage output of 12 ~ 24V.

  • Driver Type: Constant Current
  • Voltage Output: 12 ~ 24V
  • Termination: Screw Terminal
  • Protection: OCP, OTP, OVP, SCP
  • Series: RACT12 (12W)
  • Category: Power Supplies - External/Internal (Off-Board) > LED Drivers
  • IP Rating: IP20
  • Packaging: Box
  • Standard Package Quantity: 10 pieces
  • Voltage Isolation: 3.75 kV
  • Number of Outputs: 1
  • Maximum Current Output: 500mA
  • Voltage Input: 198VAC to 264VAC
  • Dimming: Triac
  • Efficiency: 81%
  • Mounting: Chassis Mount
  • Operating Temperature: -20°C to 50°C
  • Dimension: 4.29" L x 1.57" W x 0.87" H (109.0mm x 40.0mm x 22.0mm)
  • MSL Level: 1 (unlimited)
  • REACH: Unaffected
  • HTSUS: 8504.40.9580
  • Other Names: 20001091, 945-3059
  • Approvals: CE
