Products specifications

Categories Integrated Circuits
Manufacturer NXP
Packaging Reel - TR
Status Obsolete(EOL)
Type Linear
Internal Switch(s) Yes
Number of Outputs 4
Operating Input Voltage(Min) 2.3V
Maximum Supply Voltage 5.5V
Channel Output Current 25mA
Frequency 400kHz
Dimming I2C
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)

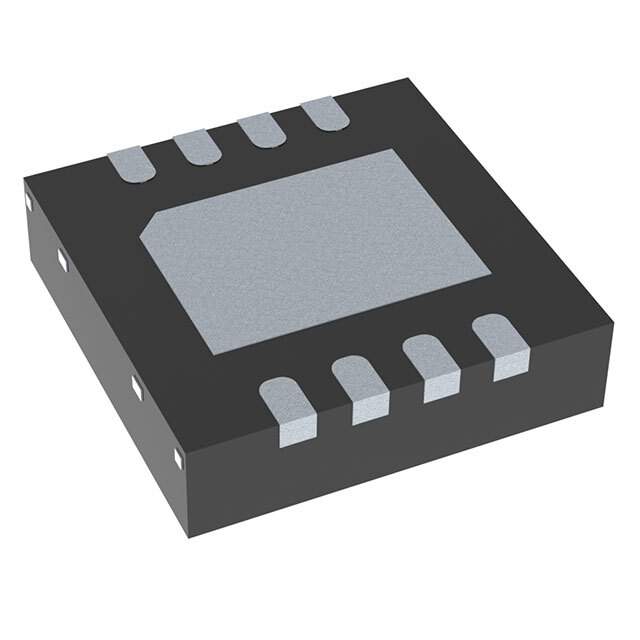

Case / Package 8-HVSON (3x3)
Win Source Part Number 061221-PCA9553TK/02
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PCA9553TK/02 CAD Model

Description

The NXP PCA9553TK/02 is a sophisticated LED driver designed to efficiently manage multiple LEDs. This integrated circuit is part of NXP's broad portfolio of LED drivers that cater to a variety of applications, including but not limited to, indicator lights, backlighting for LCD displays, and status or informational signals in consumer electronics, automotive, and industrial devices.

Key Features

  • 4-Bit I²C-bus LED driver: The PCA9553TK/02 is equipped with a 4-bit I²C interface, which allows for easy communication and control via a serial bus, making it perfect for applications where pin and space savings are crucial.
  • Low Standby-Current Consumption: Designed for energy efficiency, this LED driver consumes a very low amount of current in standby mode, thereby extending the battery life of portable devices.
  • Internal Oscillator: The device includes an integrated oscillator which removes the need for any external components to control the blinking and dimming of LEDs.
  • Programmable Blink Rate: Users can program the blink rate of the LEDs, allowing for customization according to the needs of the specific application.
  • Four Individually Controlled LED Outputs: It can control up to four LEDs independently, providing flexibility in creating various lighting effects or signals.
  • Output Current Adjustment: The output current to the LEDs can be adjusted via software, offering control over the brightness levels.
  • Sub-1 V Operation: The PCA9553TK/02 is capable of operating at a voltage just below 1 volt, which is ideal for low-voltage applications.

Applications

The PCA9553TK/02 is versatile and can be used in a wide array of applications. It is particularly well-suited for:

  • Status indicators in network and telecommunications equipment
  • Backlighting control for LCD panels
  • System health indicators for servers and storage devices
  • Consumer electronics such as set-top boxes, monitors, and mobile devices
  • Automotive interior lighting and dashboard indicators
  • Industrial control panels and signaling

Overall, the NXP PCA9553TK/02 LED driver offers a compact, efficient, and flexible solution for controlling LEDs in a multitude of electronic devices.
