Same model may have multiple batches, images only for reference.

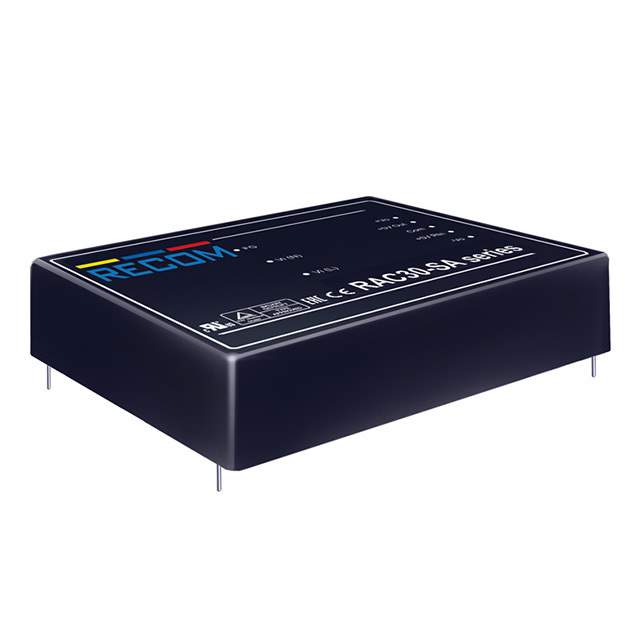

RAC30-24SA Real Image
Same model may have multiple batches, images only for reference.

RAC30-24SA

Part No RAC30-24SA
Manufacturer Recom Power
Catalog PMIC - Voltage Regulators - Linear + Switching
Description AC/DC CONVERTER 24V 30W  /  Enclosed AC DC Converters 1 Output 24V 1.25A 90 ~ 264 VAC Input
Datasheet
RAC30-24SA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>AC DC Converters
Mfr Recom Power
Series POWERLINE RAC30-A (30W)
Package Box
Product Status Not For New Designs
Type Enclosed
Number of Outputs 1
Voltage - Input 90 ~ 264 VAC
Voltage - Output 1 24V
Current - Output (Max) 1.25A
Power (Watts) 30 W
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -25°C ~ 70°C (With Derating)
Efficiency 82%
Mounting Type Through Hole
Package / Case 7-DIP Module, 5 Leads
Dimension 3.50" L x 2.50" W x 1.00" H (89.0mm x 63.5mm x 25.3mm)
Approval Agency CE, cULus
Line Regulation ±1%
Load Regulation ±1%
Weight 0.467 lb (211.83 g)
Base Product Number RAC30
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Other Names 21000038,RAC30-24SA-ND,RAC3024SA,945-2632
Standard Package 2
Win Source Part Number 1035696-RAC30-24SA
Ultra Librarian 3D Model Ultra Librarian RAC30-24SA CAD Model

Description

The RAC30-24SA is a POWERLINE RAC30-A (30W) series enclosed type AC DC converter.

  • Series: POWERLINE RAC30-A (30W)
  • Type: Enclosed AC DC Converter
  • Mounting: Power Supply Board Mount
  • Feature: SCP
  • Application: ITE (Commercial)
  • Standard Package: 2 units
  • Voltage Input: 90 ~ 264 VAC
  • Maximum Output Current: 1.25A
  • Output Voltage: 24V
  • Efficiency: 82%
  • Line Regulation: ±1%
  • Load Regulation: ±1%
  • Operating Temperature Range: -25°C ~ 70°C (With Derating)
  • Mounting Type: Through-Hole
  • Package/Case: 7-DIP Module, 5 Leads
  • Dimension: 3.50" L x 2.50" W x 1.00" H (89.0mm x 63.5mm x 25.3mm)
  • REACH: Unaffected
  • HTSUS: 8504.40.9510
  • For New Designs: No
  • Approvals: CE, cULus
