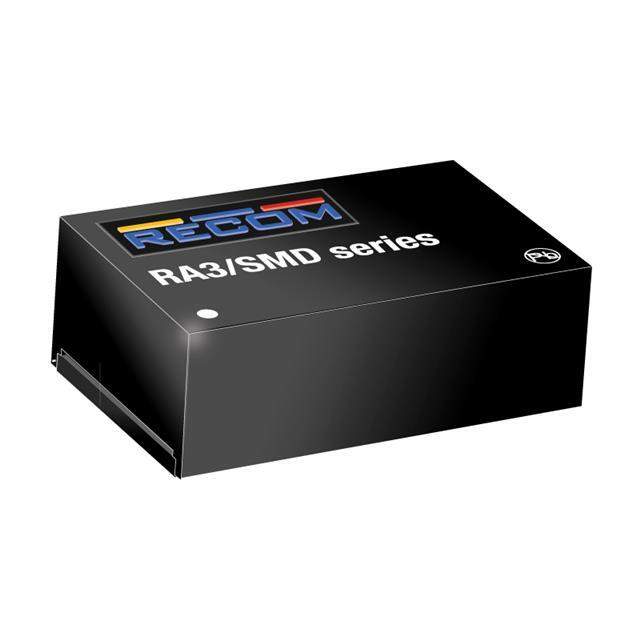

RA3-2408S/SMD Real Image
Same model may have multiple batches, images only for reference.

RA3-2408S/SMD

Part No RA3-2408S/SMD
Manufacturer Recom Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 8V 3W / Isolated Module DC DC Converter 1 Output 8V 375mA 21.6V - 26.4V Input
Datasheet
RA3-2408S/SMD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Recom Power
Series RA3
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 8V
Current - Output (Max) 375mA
Power (Watts) 3 W
Voltage - Isolation 5.2 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 82%
Mounting SMD (SMT)
Package / Case 16-SMD Module, 6 Leads
Dimension 0.92" L x 0.59" W x 0.33" H (23.4mm x 15.0mm x 8.5mm)
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 10019986,945-RA3-2408S/SMD
Standard Package 16
Win Source Part Number 1193043-RA3-2408S/SMD
Ultra Librarian 3D Model Ultra Librarian RA3-2408S/SMD CAD Model

Description

The RA3-2408S/SMD is a 3W isolated module from the RA3 series of DC-DC converters.

  • Series: RA3
  • Application: Power Supplies (Commercial)
  • Power (Watts): 3W
  • Package / Case: 16-SMD, 6 Leads
  • Mounting Type: Surface Mount
  • Output Voltage: 8V
  • Input Voltage Range: 21.6V to 26.4V
  • Voltage - Isolation: 5.2 kV
  • Short Circuit Protection: No
  • Operating Temperature: -40°C to 85°C
  • Efficiency: 82%
  • Packaging: Tube
  • Standard Package: 16 units
  • Alternative Part: 10019986
  • ECCN: EAR99
  • REACH Affected: Yes
