ON Semiconductor CAT3649HV3-GT2 Product Overview

The CAT3649HV3-GT2 is a high-efficiency, quad-mode, fractional charge pump LED driver produced by ON Semiconductor. It is designed to drive up to six LEDs in parallel with constant current for uniform brightness. With its capability to support a wide range of input voltages from 3V to 5.5V, this LED driver is particularly suitable for portable battery-powered devices such as smartphones, tablets, and handheld gaming devices.

The device operates in 1x, 1.5x, and 2x modes, automatically switching between them based on the LED forward voltage requirements, thus ensuring high efficiency across the full range of battery voltages. The CAT3649HV3-GT2 maintains output current accuracy through an internal feedback mechanism that compensates for the LED forward voltage variations and battery voltage fluctuations, providing a consistent lighting experience.

One of the key features of the CAT3649HV3-GT2 is its low noise operation, which is critical for RF and audio-sensitive applications. It achieves this through a 1MHz fixed-frequency operation, which helps to minimize the noise and potential interference with other circuits in the device.

Additionally, the device includes built-in thermal protection that shuts down the charge pump if the die temperature exceeds a preset threshold, ensuring the safety and reliability of the LED driver under various operating conditions. This feature helps to protect both the driver and the LEDs from overheating and potential damage.

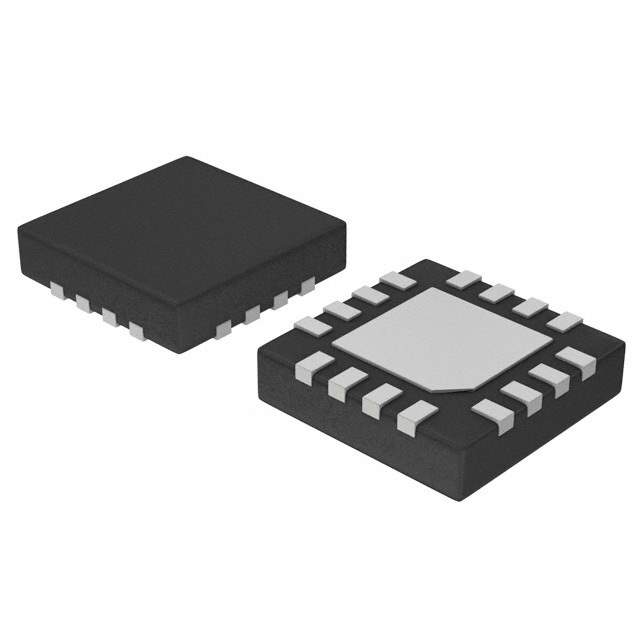

The CAT3649HV3-GT2 is available in a compact 16-lead TQFN (4 mm x 4 mm) package, making it ideal for space-constrained applications. Its small footprint and low profile contribute to the design of sleek and compact electronic devices.

In summary, the CAT3649HV3-GT2 from ON Semiconductor is a versatile, efficient, and reliable solution for powering LEDs in portable devices. Its automatic mode switching, constant current drive, low noise operation, and thermal protection make it a top choice for designers looking to enhance the visual output and user experience of their products.
