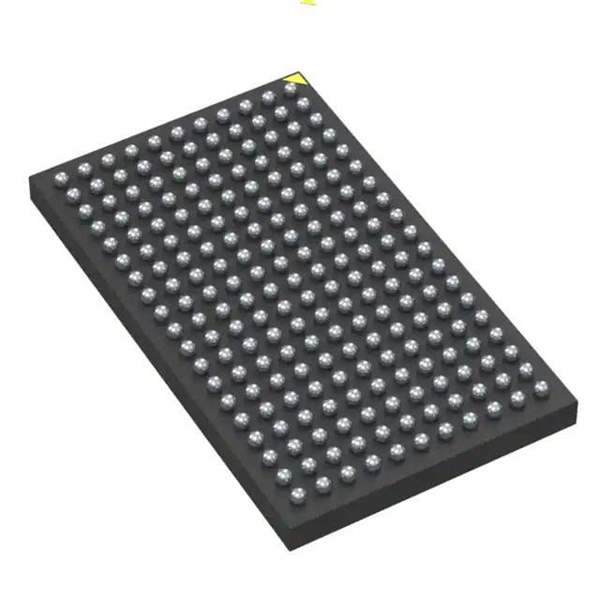

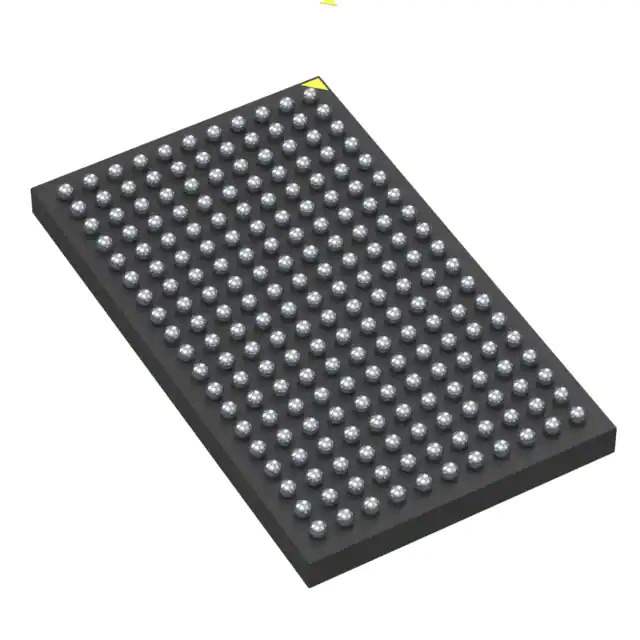

Analog Devices Inc. LTM4671IY#PBF Product Overview

The LTM4671IY#PBF is a high-performance, dual 9A or single 18A, DC/DC step-down µModule (micromodule) regulator from Analog Devices Inc. that combines top-notch power management capabilities with a compact, surface-mount package. This advanced power solution is designed to meet the rigorous demands of applications requiring efficient, high-density power supply systems.

Key Features

• Integrated Design: The LTM4671IY#PBF integrates the inductor, MOSFETs, a DC/DC controller, and supporting components into a single package, simplifying the design process and reducing the overall footprint on the PCB.
• Wide Input Voltage Range: This µModule regulator operates over a wide input voltage range of 2.375V to 5.5V, making it versatile for a variety of applications including industrial, telecommunications, and computing systems.
• Configurable Outputs: It can be configured as two independent 9A outputs or combined to deliver a single 18A output, providing flexibility in design for different load requirements.
• High Efficiency: With its high-efficiency design, the LTM4671IY#PBF minimizes power loss and heat dissipation, which is critical for maintaining performance in thermally challenging environments.
• Advanced Digital Features: The product includes PMBus/I2C compatible serial interface, allowing for advanced telemetry and control over the power supply, including voltage, current, temperature monitoring, and fault logging.
• Fast Transient Response: The regulator's fast transient response ensures stable operation during rapid load changes, which is essential for sensitive electronic devices.
• Robust Protection: It offers overvoltage, overcurrent, and overtemperature protection, safeguarding the system against various fault conditions.

Applications

The LTM4671IY#PBF is ideal for use in space-constrained applications that require high-efficiency power conversion. It is well-suited for use in:

• Datacom and Telecom Systems
• Industrial Equipment
• Medical Devices
• Test and Measurement Instruments
• High-Density Distributed Power Systems

With its robust feature set and compact design, the LTM4671IY#PBF from Analog Devices Inc. is an excellent choice for designers looking to optimize power management in their next-generation electronic systems.
