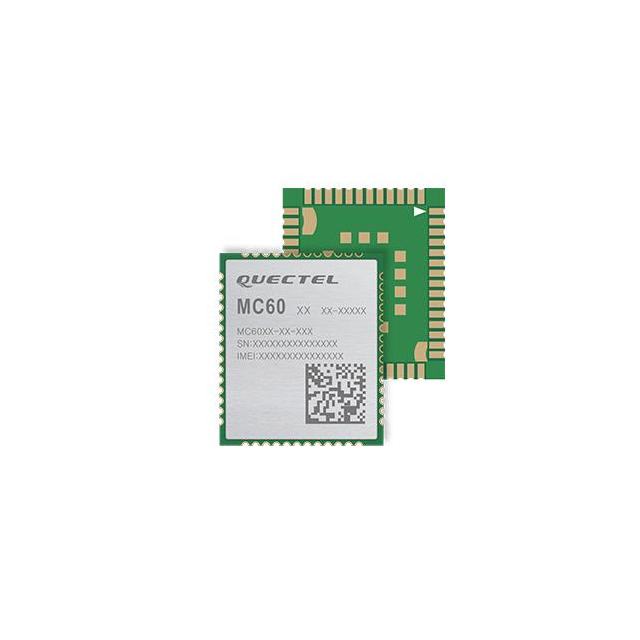

MC60ECA-04-BLE Real Image
Same model may have multiple batches, images only for reference.

MC60ECA-04-BLE

Part No MC60ECA-04-BLE
Manufacturer Quectel
Catalog RF Transceiver Modules
Description RF TXRX MOD CELLULAR SMD / Cellular, Navigation BeiDou, Galileo, GLONASS, GPS, GNSS, GSM, GPRS Transceiver Module 850MHz, 900MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz Antenna Not Included Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver Modules and Modems
Mfr Quectel
Package Tape & Reel
Product Status Obsolete
RF Family/Standard Cellular, Navigation
Protocol BeiDou, Galileo, GLONASS, GPS, GNSS, GSM, GPRS
Frequency 850MHz, 900MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz
Data Rate 85.6kbps
Sensitivity -167dBm
Serial Interfaces ADC, GPIO, PCM, UART
Antenna Type Antenna Not Included
Voltage - Supply 3.3V ~ 4.6V
Current - Receiving 1.2mA
Mounting SMD (SMT)
Temperature Range - Operating -35°C ~ 75°C
Package / Case Module
Base Product Number MC60
MSL Level 3 (168 Hours)
ECCN 5A992C 22
HTSUS 8517.62.0090
Other Names 2958-MC60ECA-04-BLECT,2958-MC60ECA-04-BLEDKR,2958-MC60ECA-04-BLETR
Standard Package 250
Win Source Part Number 975810-MC60ECA-04-BLE
Ultra Librarian 3D Model Ultra Librarian MC60ECA-04-BLE CAD Model

Description

The MC60ECA-04-BLE is an RF transceiver module from Quectel.

  • Applications: Cellular and Navigation
  • Data Rate: 85.6kbps
  • Frequencies: 850MHz, 900MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.8GHz, and 1.9GHz
  • Interfaces: ADC, GPIO, PCM, and UART serial
  • Sensitivity: -167dBm
  • Receiving Current: 1.2mA
  • Operating Temperature: -35°C to 75°C
  • Voltage Supply: 3.3V to 4.6V
  • Packaging: Tape and Reel
  • Standard Package: 250
