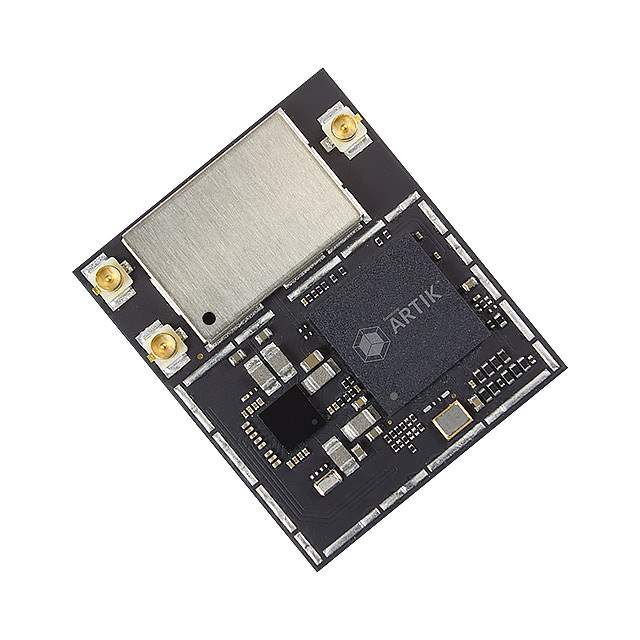

SIP-005AYS001 Real Image
Same model may have multiple batches, images only for reference.

SIP-005AYS001

Part No SIP-005AYS001
Manufacturer Samsung
Catalog RF Transceiver Modules
Description RX TXRX MOD BLE CASTELLATION SMD / Transceiver Module 2.4GHz Antenna Not Included, Castellation Surface Mount
Datasheet
SIP-005AYS001 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver Modules and Modems
Mfr Samsung Semiconductor, Inc.
Series ARTIK
Package Tray
Product Status Obsolete
Frequency 2.4GHz
Data Rate 54Mbps
Power - Output 19dBm
Sensitivity -82dBm
Serial Interfaces I²C, I²S, JTAG, SPI, UART, USB
Antenna Type Antenna Not Included, Castellation
Memory Size 4GB Flash, 512MB DRAM
Voltage - Supply 3.8V
Mounting SMD (SMT)
Temperature Range - Operating -25°C ~ 85°C
Package / Case Module
Other Names 1510-1313
Standard Package 1
MSL Level Vendor Undefined
ECCN 5A992C
HTSUS 8517.62.0090
Win Source Part Number 1235688-SIP-005AYS001
Ultra Librarian 3D Model Ultra Librarian SIP-005AYS001 CAD Model

Description

The SIP-005AYS001 is an RF transceiver module and modem manufactured by Samsung.

  • Series: ARTIK
  • Frequency: 2.4GHz
  • Data Rate: 54Mbps
  • Memory Size: 4GB flash and 512MB DRAM
  • Antenna Type: Castellation
  • Power Output: 19dBm
  • Sensitivity: -82dBm
  • Serial Interfaces: I²C, I²S, JTAG, SPI, UART, and USB
  • Voltage Supply: 3.8V
  • Operating Temperature: -25°C ~ 85°C
