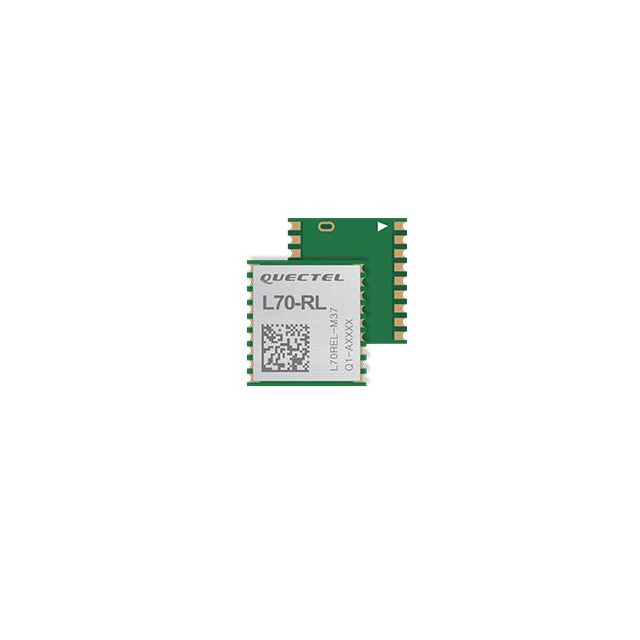

L70REL-M37 Quectel
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1307365-L70REL-M37
Category RF and Wireless RF Transceiver Modules and Modems
Mfr Quectel
Packaging Tape & Reel (TR) Cut Tape (CT)
Part Status Not For New Designs
RF Family/Standard Navigation
Protocol GPS
Frequency 1.575GHz
Data Rate 115.2kbps
Sensitivity -165dBm
Serial Interfaces UART
Ultra Librarian 3D Model Ultra Librarian L70REL-M37 CAD Model

Description

  • Extremely compact size: 10.1mm × 9.7mm × 2.5mm
  • Cost efficient for ROM-based version
  • Ultra low power consumption in tracking mode, 13mA
  • EASY™, an advanced AGPS technology without external memory
  • High sensitivity: -165dBm @Tracking, -148dBm @Acquisition
  • 66 acquisition channels, 22 tracking channels
  • Support QZSS
  • Balloon mode, for high altitude up to 80km
  • PPS VS. NMEA can be used for time service
  • Great anti-jamming performance due to multi-tone active interference canceller
