Same model may have multiple batches, images only for reference.

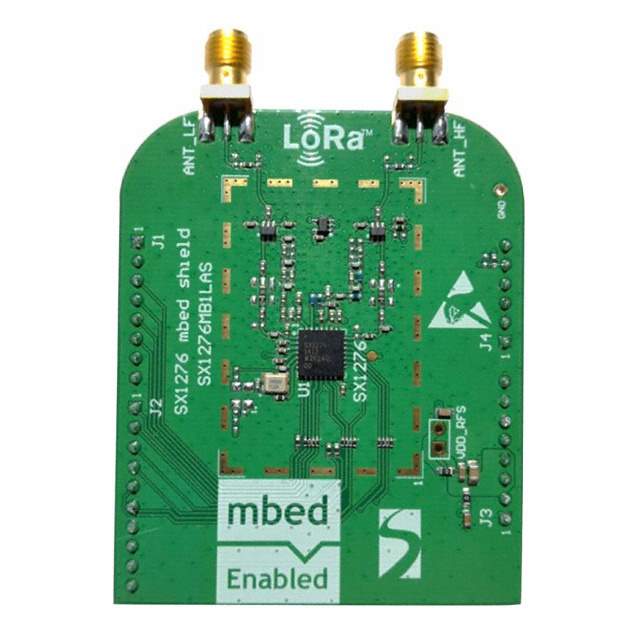

SX1276MB1MAS Real Image
Same model may have multiple batches, images only for reference.

SX1276MB1MAS

Part No SX1276MB1MAS
Manufacturer Semtech Corporation
Catalog RF Transceiver Modules
Description RX TXRX MOD ISM < 1GHZ U.FL TH / General ISM < 1GHz Transceiver Module 137MHz ~ 1.02GHz Antenna Not Included, U.FL Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver Modules and Modems
Mfr Semtech Corporation
Series LoRa™
Package Bulk
RF Family/Standard General ISM < 1GHz
Modulation FSK, GFSK, GMSK, MSK, OOK
Frequency 137MHz ~ 1.02GHz
Data Rate 300kbps
Power - Output 14dBm
Sensitivity -148dBm
Serial Interfaces SPI
Antenna Type Antenna Not Included, U.FL
Voltage - Supply 1.8V ~ 3.7V
Current - Receiving 12mA
Current - Transmitting 120mA
Mounting Type Through Hole
Temperature Range - Operating -40°C ~ 85°C
Package / Case Module
Base Product Number SX1276
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1235683-SX1276MB1MAS
Ultra Librarian 3D Model Ultra Librarian SX1276MB1MAS CAD Model

Description

The SX1276MB1MAS is an RF transceiver module from Semtech Corporation. It is a LoRa™ series module with a frequency range of 137MHz to 1.02GHz.

  • Data Rate: 300kbps
  • Power Output: 14dBm
  • Sensitivity: -148dBm
  • Modulation: FSK, GFSK, GMSK, MSK, and OOK
  • Serial Interface: SPI
  • Voltage Supply: 1.8V to 3.7V
  • Current Consumption (Receiving): 12mA
  • Current Consumption (Transmitting): 120mA
  • Mounting Type: Through-Hole
  • Temperature Range: -40°C to 85°C
