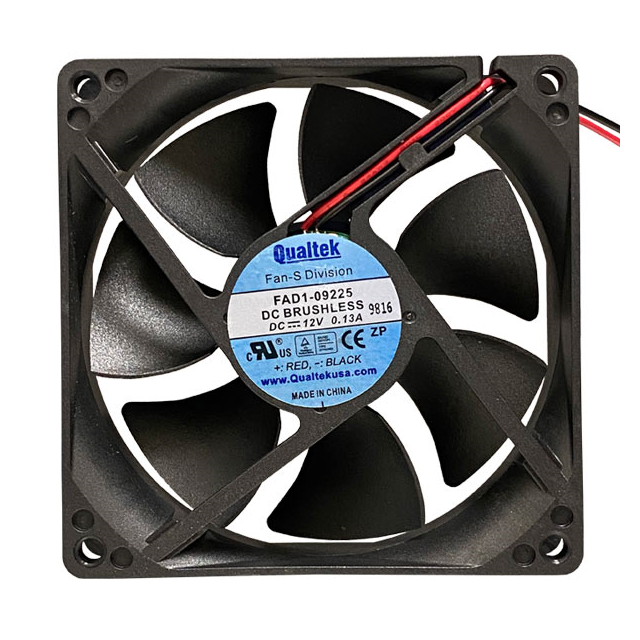

FAD1-09225CBHW11

Part No FAD1-09225CBHW11
Manufacturer Qualtek
Catalog DC Fans
Description FAN AXIAL 92.5X25MM 12VDC WIRE
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Fans, Thermal Management
Manufacturer Qualtek
Status Active
Voltage Rating 12VDC
Width 25.00mm
Air Flow 56.1 CFM (1.59m3/min)
Static Pressure 0.146 in H2O (36.4 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Noise 37.5 dB(A)
Power (Watts) 2.88W
RPM 2900 RPM
Termination 2 Wire Leads
Temperature Range - Operating 14 to 158°F (-10 to 70°C)
Approvals CE, TUV, UL
Weight 0.203 lb (92.08g)
Current Rating 0.240A
Material - Frame Plastic
Material - Blade Plastic
Win Source Part Number 137394-FAD1-09225CBHW11
Popularity Medium
Supply and Demand Status Limited
Application Field Used in HVAC
Ultra Librarian 3D Model Ultra Librarian FAD1-09225CBHW11 CAD Model

Description

FAD1-09225CBHW11

Introducing the FAD1-09225CBHW11, a premium component that exceeds expectations with its state-of-the-art capabilities and robust design. Ideally suited for a diverse range of applications, it stands as a testament to quality and performance.

  • Data Centers
  • Networking Systems
  • Advanced Computing

Features and Benefits:

  • High-efficiency performance: Optimizes energy usage while delivering top-notch output.
  • Low-noise operation: Suitable for noise-sensitive environments.
  • Easy installation: User-friendly design facilitates swift setup.

Additional Details: The FAD1-09225CBHW11 sets a new standard with its precise construction and unparalleled versatility in demanding scenarios.
