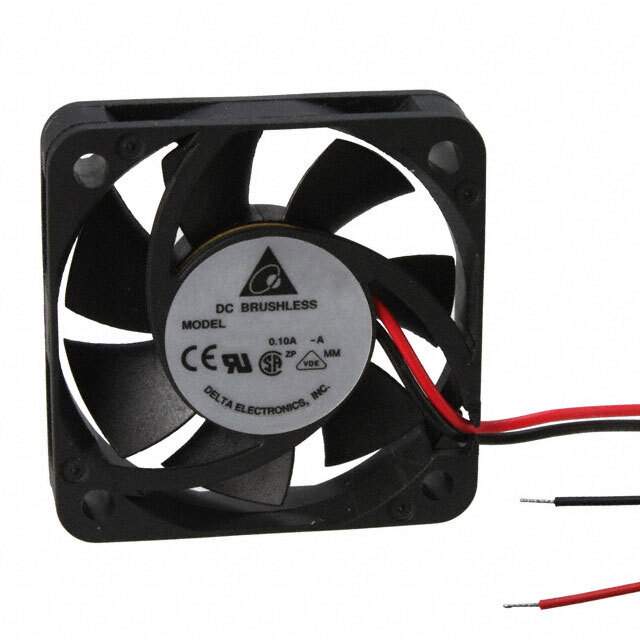

AFB0405HHA-A

Part No AFB0405HHA-A
Manufacturer Delta Electronics
Catalog DC Fans
Description FAN AXIAL 40X10MM BALL 5VDC WIRE / Fan Tubeaxial 5VDC Square - 40mm L x 40mm H Ball 8.2 CFM (0.230m³/min) 2 Wire Leads
Datasheet
AFB0405HHA-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series AFB
Package Bulk
Voltage - Rated 5VDC
Dimension Square - 40mm L x 40mm H
Width 10.00mm
Air Flow 8.2 CFM (0.230m³/min)
Static Pressure 0.190 in H2O (47.3 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection
Noise 31.5dB(A)
Power (Watts) 450 mW
RPM 7000 RPM
Termination 2 Wire Leads
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.031 lb (14.06 g)
Current Rating (Amps) 0.090A
Voltage Range 4 ~ 5.5VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number AFB0405
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Other Names AFB0405HHAA,603-1512
Standard Package 640
Win Source Part Number 1032777-AFB0405HHA-A
Ultra Librarian 3D Model Ultra Librarian AFB0405HHA-A CAD Model

Description

The AFB0405HHA-A is a DC brushless fan from Delta Electronics.

  • Voltage Rating: 5VDC
  • Power: 450 mW
  • Fan Type: tubeaxial
  • Bearing Type: ball
  • Lifetime: 70000 hours @ 40°C
  • Width: 10.00mm
  • Dimension: square - 40mm L x 40mm H
  • Air Flow: 8.2 CFM (0.230m³/min)
  • Static Pressure: 0.190 in H2O (47.3 Pa)
  • Noise Level: 31.5dB(A)
  • Maximum RPM: 7000
  • Locked Rotor Protection: Yes
  • Termination: 2 wire leads
  • Temperature Range: 14 ~ 158°F (-10 ~ 70°C)
  • Package: bulk
  • Alternative Part: AFB0405HHAA
  • Alternative Part: 603-1512
