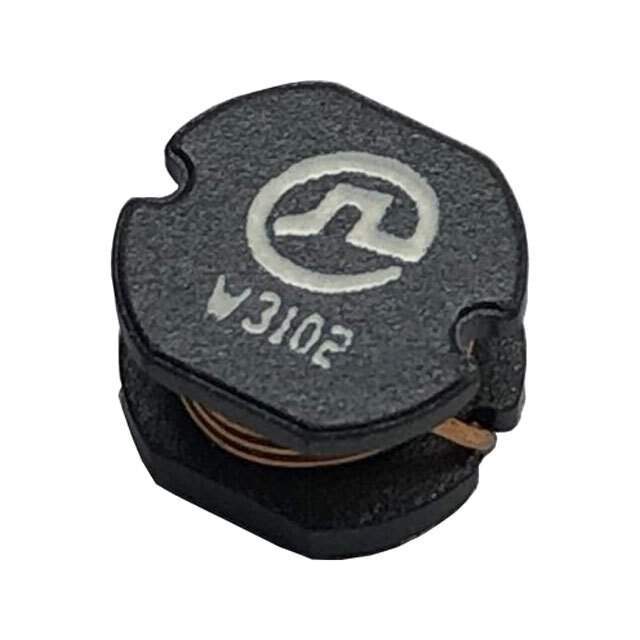

W3102 Pulse Electronics
Same model may have multiple batches, images only for reference.

W3102

Part No W3102
Manufacturer Pulse
Catalog RFID Antennas
Description RFID ANTENNA 13.56MHZ 7.8X7X5MM
Datasheet
W3102 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310269-W3102
Category RF and Wireless >RFID Antennas
Manufacturer Pulse Electronics
Packaging Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Frequency 13.56MHz
Size / Dimension 7.80mm L x 7.00mm W x 5.00mm H
Style Coil
Impedance 80 Ohms
Operating Temperature (Min) - 40 C
Operating Temperature (Max) + 125 C
Ultra Librarian 3D Model Ultra Librarian W3102 CAD Model

Description

  • Antenna type coil on ferrite core
  • Frequency 13.56MHz
  • Inductance 4.7uH
  • Read Distance 17mm
  • Size 7.8 x 7 x 5 mm
  • Fully SMD compatible
  • RoHS Compliant
  • MSL level 3
