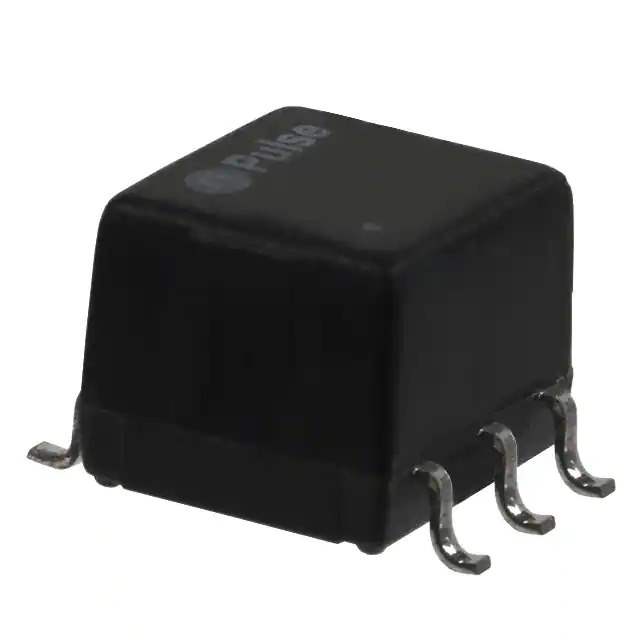

T3001 Real Image
Same model may have multiple batches, images only for reference.

T3001

Part No T3001
Manufacturer Pulse
Catalog Pulse Transformers
Description TRANSFORMER TELECOM SINGLE T3/E3 / 100μH T3/E3 (Single) Pulse Transformer 1:1 Surface Mount
Datasheet
T3001 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Bulk
Product Status Obsolete
Transformer Type T3/E3 (Single)
Inductance 100µH
Mounting Type Surface Mount
Size / Dimension 0.300" L x 0.275" W (7.62mm x 7.00mm)
Height - Seated (Max) 0.250" (6.35mm)
Temperature Range - Operating -40°C ~ 85°C
Standard Package 70 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 351315-T3001
Ultra Librarian 3D Model Ultra Librarian T3001 CAD Model

Description

The 351315-T3001 is a T3/E3 (Single) pulse transformer from Pulse.

  • Product Name: 351315-T3001
  • Type: T3/E3 (Single) pulse transformer
  • Manufacturer: Pulse
  • Category: Transformers - Pulse Transformers
  • Packaging: Bulk
  • Size/Dimension: 0.300" L x 0.275" W (7.62mm x 7.00mm)
  • Inductance: 100µH
  • Maximum Seated Height: 0.250" (6.35mm)
  • Standard Package: 70 pieces
  • Mounting Type: Surface mount
  • Operating Temperature: -40°C to 85°C
  • ECCN: EAR99
  • REACH: Unaffected
  • MSL: 3 (168 Hours)
  • HTSUS Code: 8504.31.2000
