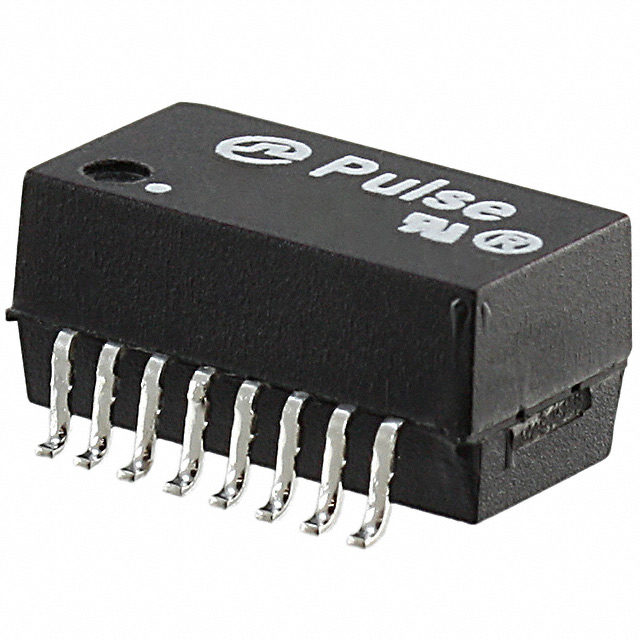

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tape & Reel
Product Status Obsolete
Mounting Type Surface Mount
Size / Dimension 0.505" L x 0.280" W (12.83mm x 7.11mm)
Height - Seated (Max) 0.245" (6.22mm)
Standard Package 600 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 351050-T1144T
Ultra Librarian 3D Model Ultra Librarian T1144T CAD Model

Description

The 351050-T1144T is a pulse transformer designed for use in transformers - pulse transformers.

  • Package: The package for this transformer is tape & reel.
  • Size: 0.505" L x 0.280" W (12.83mm x 7.11mm).
  • Maximum Seated Height: 0.245" (6.22mm).
  • Mounting: Surface mountable.
  • Status: It is an obsolete product from Pulse.
