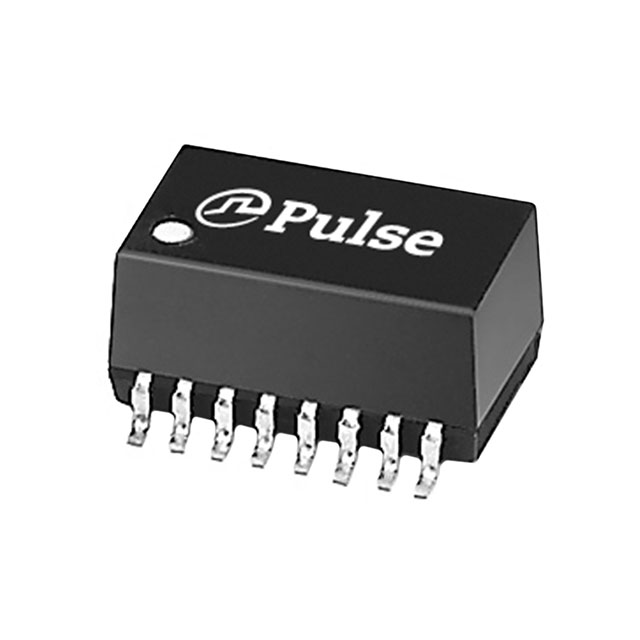

Same model may have multiple batches, images only for reference.
ST7011QNLT Pulse
Same model may have multiple batches, images only for reference.

ST7011QNLT

Part No ST7011QNLT
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1CT:1.414CT 1CT:1CT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tape & Reel
Product Status Obsolete
Transformer Type LAN 10G Base-T
Inductance 175µH
Mounting Type Surface Mount
Size / Dimension 0.455" L x 0.275" W (11.56mm x 6.99mm)
Height - Seated (Max) 0.225" (5.72mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 900 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 343680-ST7011QNLT
Ultra Librarian 3D Model Ultra Librarian ST7011QNLT CAD Model

Description

The 343680-ST7011QNLT is a pulse transformer specifically designed for LAN 10G Base-T applications.

  • Manufacturer: Pulse
  • Application: LAN 10G Base-T
  • Package: Tape and reel
  • Size/Dimension: 0.455" L x 0.275" W (11.56mm x 6.99mm)
  • Inductance: 175µH
  • Height when seated: 0.225" (5.72mm)
  • Standard Package: 900 pieces
  • Mounting: Surface mountable
  • Operating Temperature: 0°C to 70°C
  • REACH: Unaffected
  • HTSUS: 8504.31.2000
