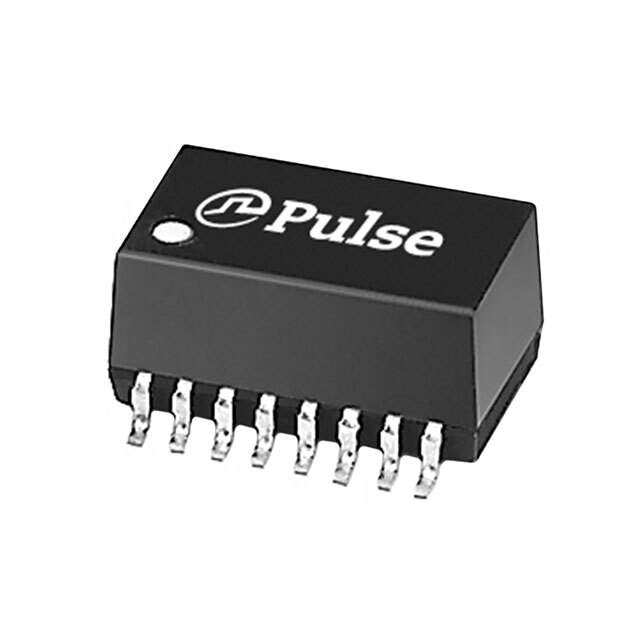

ST7011QNL Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Pulse Electronics Network
Package Tube
Transformer Type LAN 10G Base-T
Inductance 175µH
Mounting SMD (SMT)
Dimension 0.455" L x 0.275" W (11.56mm x 6.99mm)
Height - Seated (Max) 0.225" (5.72mm)
Temperature Range - Operating 0°C ~ 70°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Standard Package 45
Win Source Part Number 1096561-ST7011QNL
Ultra Librarian 3D Model Ultra Librarian ST7011QNL CAD Model

Description

The Pulse 1096561-ST7011QNL is a LAN 10G Base-T pulse transformer that has an inductance of 175µH and can operate @ a temperature range of 0°C to 70°C.

  • Package: This transformer is supplied in a tube package and has a standard package of 45.
  • Weight: There is no weight information available for this product.
