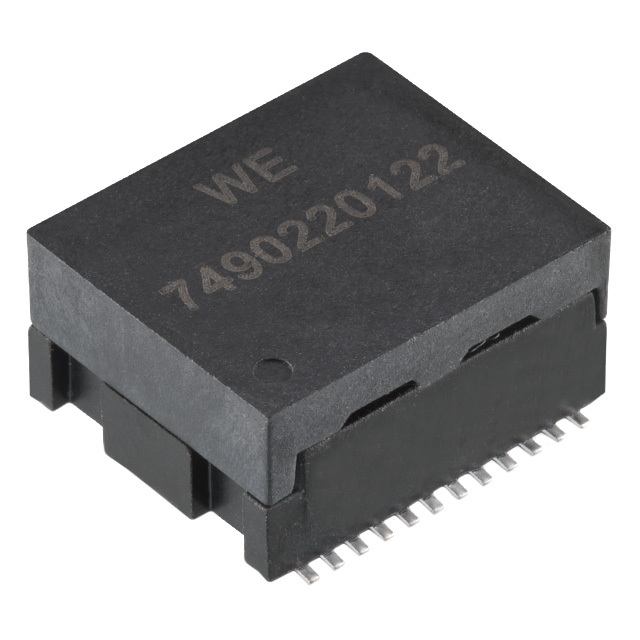

7490220122 Wurth Electronics Inc – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

7490220122

Part No 7490220122
Manufacturer Wurth Electronics Inc
Catalog Pulse Transformers
Description 350µH LAN 10/100/1000 Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Würth Elektronik
Series WE-LAN
Packaging Reel - TR
Transformer Type LAN 10/100/1000 Base-T
Inductance 350µH
Mounting Type Surface Mount
Size / Dimension 0.720" L x 0.579" W (18.29mm x 14.70mm)
Height - Seated (Max) 0.346" (8.80mm)
Temperature Range - Operating -40°C ~ 85°C
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1481183-7490220122
Ultra Librarian 3D Model Ultra Librarian 7490220122 CAD Model
