AC1020 Talema Group LLC – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

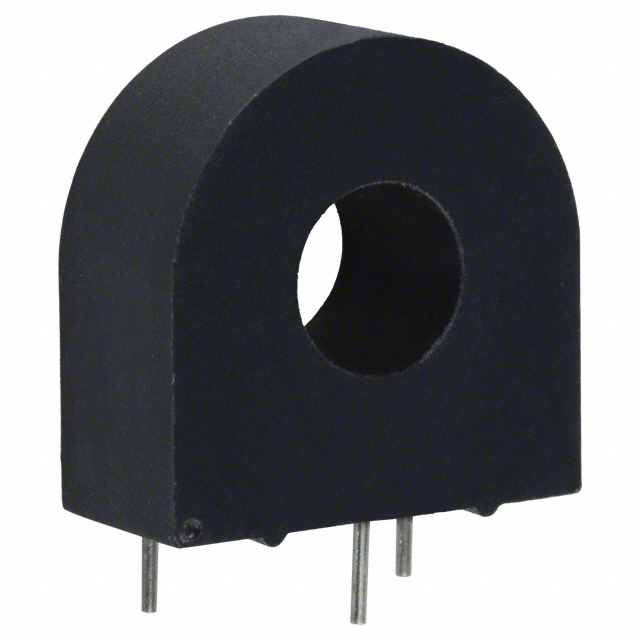

AC1020

Part No AC1020
Manufacturer Talema Group LLC
Catalog Current Sense Transformers
Description 20 A Current Sense Transformer 50/60Hz 41.8Ohm Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Talema Group LLC
Series AC
Packaging Box
Frequency Range 50/60Hz
Type Non-Invasive (Solid Core)
Current Rating (Amps) 20 A
DC Resistance (DCR) 41.8Ohm
Mounting Type Through Hole
Size / Dimension 0.937" L x 0.438" W (23.80mm x 11.12mm)
Height - Seated (Max) 0.937" (23.80mm)
Termination Style PC Pin
Weight 0.036 lb (16.33 g)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4035
Win Source Part Number 1478882-AC1020
Ultra Librarian 3D Model Ultra Librarian AC1020 CAD Model
