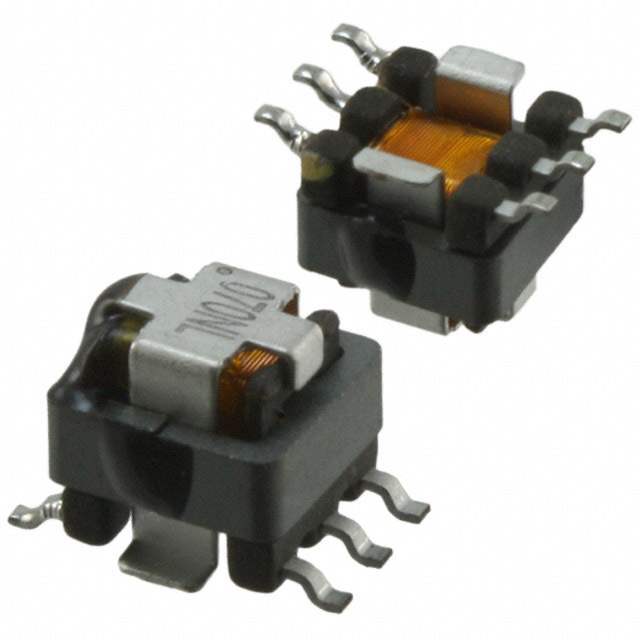

PA1005.100QNL Pulse Electronics
Same model may have multiple batches, images only for reference.

PA1005.100QNL

Part No PA1005.100QNL
Manufacturer Pulse
Catalog Current Sense Transformers
Description CURR SENSE XFMR 1:100 20A SMD
Datasheet
PA1005.100QNL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers >Current Sense Transformers
Manufacturer Pulse Electronics
Packaging Tray
Part Status Active
Frequency Range Frequency Range
Type Invasive
Current Rating (Amps) 20 A
Inductance 2 mH
DC Resistance (DCR) 0.75mOhm Primary, 5.5Ohm Secondary
Ratings AEC-Q200
Ultra Librarian 3D Model Ultra Librarian PA1005.100QNL CAD Model

Description

  • Height: 5.5mm
  • Max Footprint: 8.4mm x 7.2mm
  • Max Current Rating: up to 20A
  • Frequency Range: 50kHz to 1MHz
