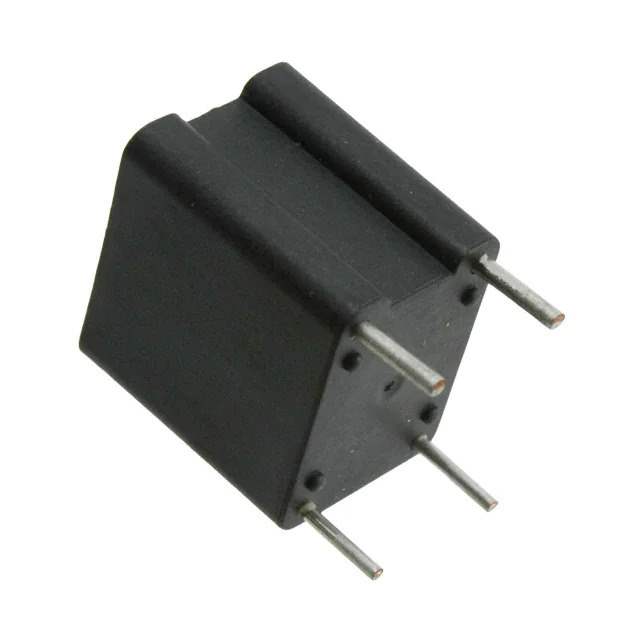

PE-67200NL Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers - Current Sense Transformers
Mfr Pulse
Package Tray
Product Status Active
Frequency Range 10kHz ~ 200kHz
Type Invasive
Current Rating (Amps) 38 A
Inductance 80 mH
DC Resistance (DCR) 200Ohm Primary, 4.5Ohm Secondary
Mounting Type Through Hole
Size / Dimension 0.565" L x 0.750" W (14.35mm x 19.05mm)
Height - Seated (Max) 0.750" (19.05mm)
Termination Style PC Pin
Standard Package 80 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 930231-PE-67200NL
Ultra Librarian 3D Model Ultra Librarian PE-67200NL CAD Model

Description

The 857940 is a current sense transformer from Pulse.

  • Manufacturer: Pulse
  • Transformer Type: Invasive
  • Size: 0.565" L x 0.750" W (14.35mm x 19.05mm)
  • Seated Height: 0.750" (19.05mm)
  • Inductance: 80 mH
  • Current Rating: 38 A
  • Mounting: Through-Hole
  • Package: tray
  • DC Resistance (DCR): 200Ohm primary and 4.5Ohm secondary
  • Operating Temperature Range: -40°C to 85°C
