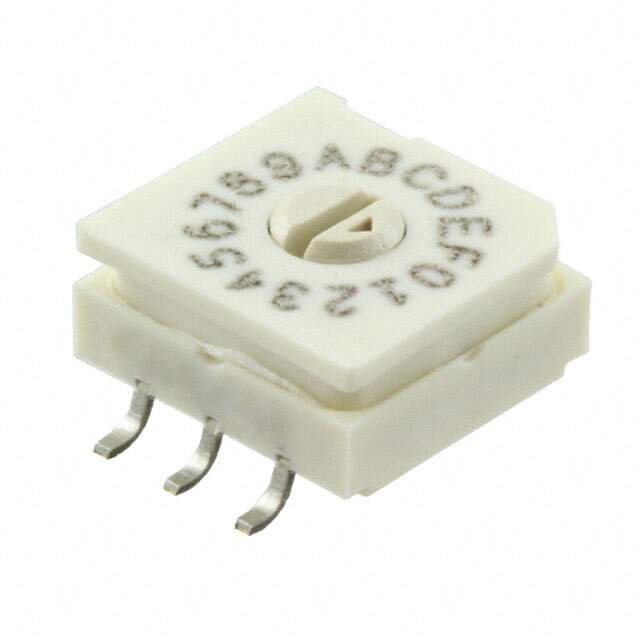

94HAB16WRT Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer Grayhill Inc.
Series 94H
Packaging Reel - TR
Circuit Hexadecimal
Number of Positions 16
Current Rating 100mA
Voltage Rating 50VDC
Actuator Type Rotary for Tool
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.225" (5.72mm)
Mounting SMD
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Sealed
Body Material Plastic
Length 0.390" (9.91mm)
Operating Temperature Range -40°C ~ 85°C
Mechanical Life 10,000 Cycles
RoHS State Request Verification
Win Source Part Number 1134285-94HAB16WRT
Manufacturer Homepage www.grayhill.com
Popularity Medium
Supply and Demand Status Limited
Family Name 94H
Introduction Date August 22, 2003
ECCN EAR99
Country of Origin China
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian 94HAB16WRT CAD Model

Description

The Grayhill Inc. 94H series rotary switch is a high-quality component designed for use in electronic circuits.

  • Series: 94H
  • Manufacturer: Grayhill Inc.
  • Positions: 16
  • Pitch: 0.100" (2.54mm)
  • Termination Style: Gull Wing
  • Contact Finish: Gold
  • Construction: Copper Alloy
  • Sealed: Yes
  • Voltage Rating: 50VDC
  • Current Rating: 100mA
  • Operating Temperature: -40°C to 85°C
  • Mechanical Life: 10,000 cycles
  • Washable: Yes
  • Mounting Type: Surface Mount
  • Height Above Board: 0.225" (5.72mm)
