Same model may have multiple batches, images only for reference.

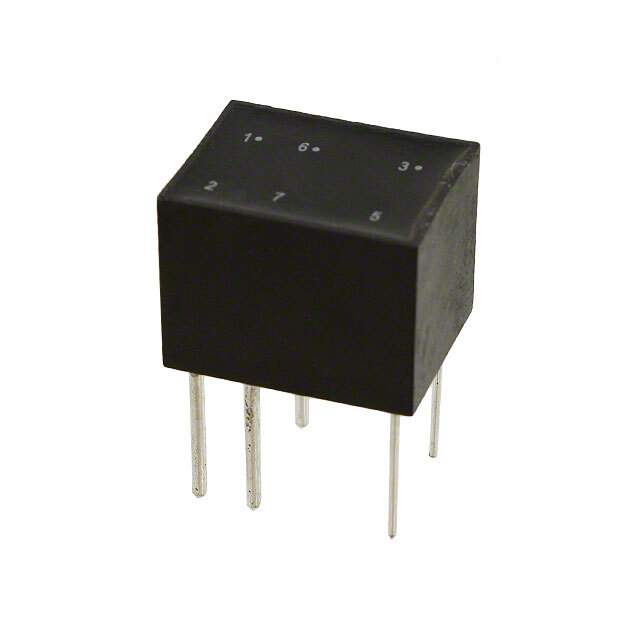

PE-64487NL Real Image
Same model may have multiple batches, images only for reference.

PE-64487NL

Part No PE-64487NL
Manufacturer Pulse
Catalog Current Sense Transformers
Description XFRMR CURR SENSE 20.0MH T/H
Datasheet
PE-64487NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Tray
Status Active
Frequency Range 20kHz to 200kHz
Type Invasive
Current Rating 20A
Inductance 20mH
DC Resistance (DCR) 100 Ohm Primary, 1.4 Ohm Secondary
Mounting Through Hole
Height - Seated (Max) 0.700" (17.78mm)
Termination Style PC Pin
Win Source Part Number 209765-PE-64487NL
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PE-64487NL CAD Model

Description

Pulse Electronics Corporation's transformer is a high-quality component that is designed to provide excellent performance and reliability.

  • Current Rating: 20A
  • Inductance: 20mH
  • DC Resistance: 100 Ohm Primary, 1.4 Ohm Secondary
  • Temperature Range: -40°C to 125°C
  • Mounting Style: Through-hole
  • Weight: - grams
  • Popularity: Medium
  • Supply and Demand Status: Balanced
