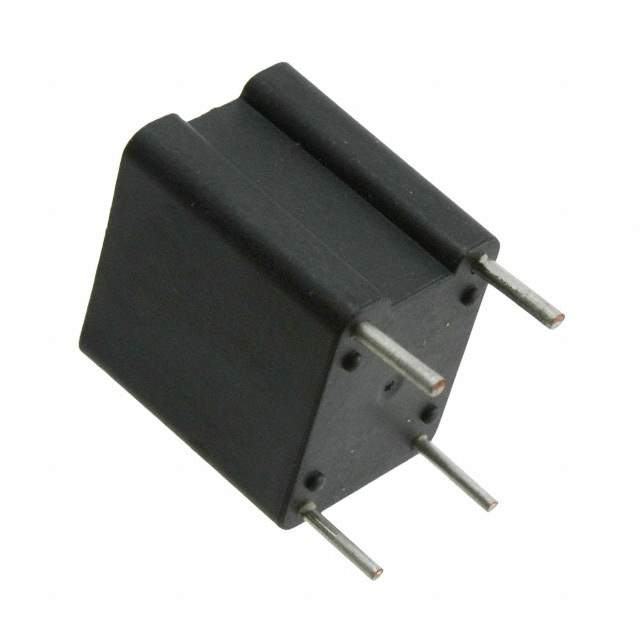

PE-67050NL Real Image
Same model may have multiple batches, images only for reference.

PE-67050NL

Part No PE-67050NL
Manufacturer Pulse
Catalog Current Sense Transformers
Description XFRMR CURR SENSE 35A 5.0MH T/H
Datasheet
PE-67050NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Tray
Status Active
Frequency Range 10kHz to 200kHz
Type Invasive
Current Rating 35A
Inductance 5mH
DC Resistance (DCR) 15 Ohm Primary, 700 mOhm Secondary
Mounting Through Hole
Height - Seated (Max) 0.750" (19.05mm)
Termination Style PC Pin
Win Source Part Number 131474-PE-67050NL
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PE-67050NL CAD Model

Description

The Pulse Electronics Corporation PE-67050NL is an inductive transformer with a current rating of 35A and an inductance of 5mH.

  • Current Rating: 35A
  • Inductance: 5mH
  • Supply and Demand Status: Balance
  • Category: Transformers
  • Applications: Power Supplies, Lighting Ballasts, and Motor Drives
  • Manufacturer: Pulse Electronics Corporation
  • DC Resistance: 15 Ohm Primary, 700 mOhm Secondary
