Same model may have multiple batches, images only for reference.

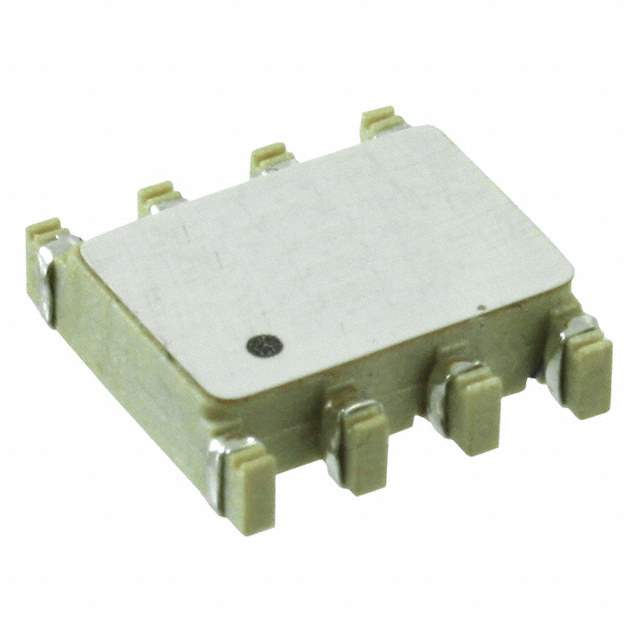

PE-65854NL Real Image
Same model may have multiple batches, images only for reference.

PE-65854NL

Part No PE-65854NL
Manufacturer Pulse
Catalog Common Mode Chokes
Description COMMON MODE CHOKE 4LN SMD
Datasheet
PE-65854NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Pulse Electronics Corporation
Packaging Tube/Rail
Status Active
Filter Type Signal Line
Number of Lines 4
DC Resistance (DCR) (Max) 400 mOhm
Temperature Range - Operating 0°C to 70°C
Mounting SMD (SMT)
Height (Max) 0.098" (2.50mm)
Dimension Vertical, 8 Flat Lead
Win Source Part Number 117261-PE-65854NL
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PE-65854NL CAD Model

Description

The PE-65854NL is an electronic component manufactured by Pulse Electronics Corporation.

  • Component Type: signal line filter
  • DC Resistance: 400 mOhm
  • Maximum Current Rating: -
  • Mounting: through SMD (SMT)
  • Lines: four lines
  • Temperature Range: 0°C to 70°C
  • Supply and Demand: balanced
