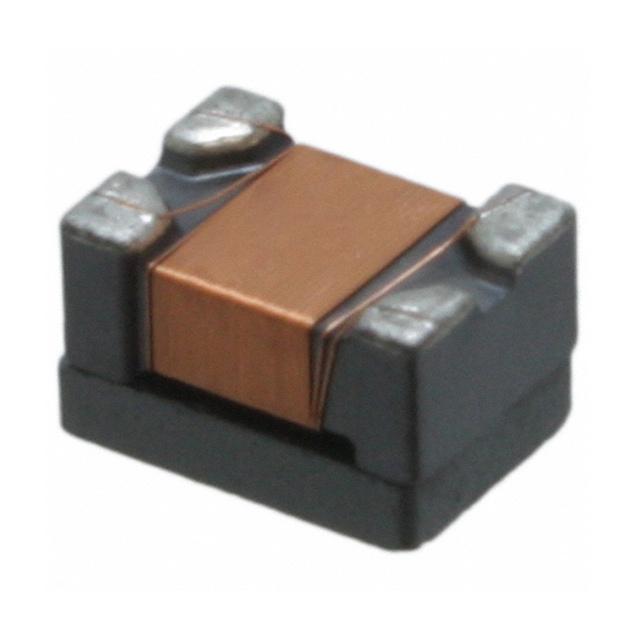

PE-0805CCMC900STS Pulse
Same model may have multiple batches, images only for reference.

PE-0805CCMC900STS

Part No PE-0805CCMC900STS
Manufacturer Pulse
Catalog Common Mode Chokes
Description CMC 330MA 2LN 90 OHM SMD
Datasheet
PE-0805CCMC900STS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 90 Ohm @ 100MHz
Current Rating (Max) 330mA
DC Resistance (DCR) (Max) 350 mOhm
Voltage Rating - DC 50V
Mounting SMD (SMT)
Height (Max) 0.051" (1.30mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 112128-PE-0805CCMC900STS
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PE-0805CCMC900STS CAD Model

Description

The Pulse Electronics Corporation filter is a high-quality component designed to provide excellent filtering capabilities in a variety of applications.

  • Popularity: Medium
  • Supply and Demand: Balance
  • Win Source Part Number: 112128-PE-0805CCMC900STS
  • Packaging: Reel
  • Voltage Rating: 50V
  • Current Rating: 330mA
  • Mounting: SMD (SMT)
  • Height: 0.051" (1.30mm)
  • Category: Filters
  • Dimension: Horizontal, 4 PC Pad
