Same model may have multiple batches, images only for reference.

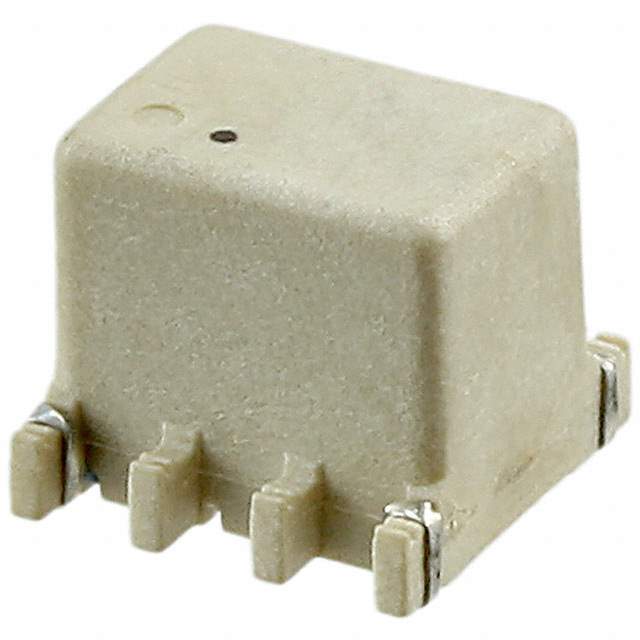

PA2007NL Real Image
Same model may have multiple batches, images only for reference.

PA2007NL

Part No PA2007NL
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1:1 1.49MH / 1.49mH Pulse Transformer 1:1 Surface Mount
Datasheet
PA2007NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Manufacturer Pulse Electronics
Packaging Tube
Inductance 1.49mH
ET (Volt-Time) 53VµS
Mounting Surface Mount
Size / Dimension 0.355" L x 0.340" W (9.02mm x 8.64mm)
Height - Seated (Max) 0.300" (7.62mm)
Temperature Range - Operating -40°C ~ 130°C
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Part Number -PA2007NL,553-2926-5
Standard Package 50
Win Source Part Number 1330506-PA2007NL
Ultra Librarian 3D Model Ultra Librarian PA2007NL CAD Model

Description

The Pulse Electronics PA2007NL is a pulse transformer that is designed to be used in various electronic devices.

  • Size Dimension: 0.355" L x 0.340" W (9.02mm x 8.64mm)
  • Inductance: 1.49mH
  • ROHS Compliant: Yes
