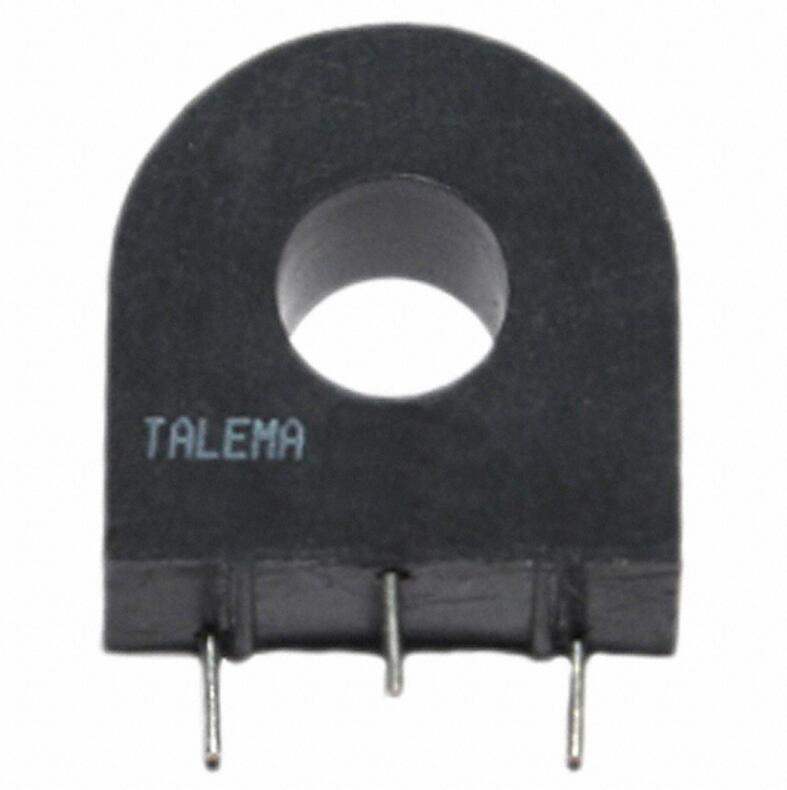

AC1005 Talema Group LLC
Same model may have multiple batches, images only for reference.

AC1005

Part No AC1005
Manufacturer Talema Group LLC
Catalog Current Sense Transformers
Description CURR SENSE XFMR 5A T/H
Datasheet
AC1005 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1201806-AC1005
Win Source Part Number Cross
Manufacturer Talema Group LLC
Category Transformers Current Sense Transformers
Series AC
Package Tray
Product Status Active
Frequency Range 50/60Hz
Type Non-Invasive (Solid Core)
Current Rating (Amps) 5 A
DC Resistance (DCR) 41.8Ohm
Ultra Librarian 3D Model Ultra Librarian AC1005 CAD Model

Description

The 1201806 is a non-invasive current sense transformer manufactured by Talema Group LLC. Bold the product name (e.g., BAV99S,135 → 1201806) and manufacturer (e.g., Nexperia USA Inc. → Talema Group LLC).

  • Series: AC series
  • Application: Current Sensing
  • Package: Tray
  • Frequency Range: 50/60Hz
  • DC Resistance (DCR): 41.8Ohm
  • Current Ratio: 1000:1
  • Current Rating: 5 A
  • Product Status: Active
