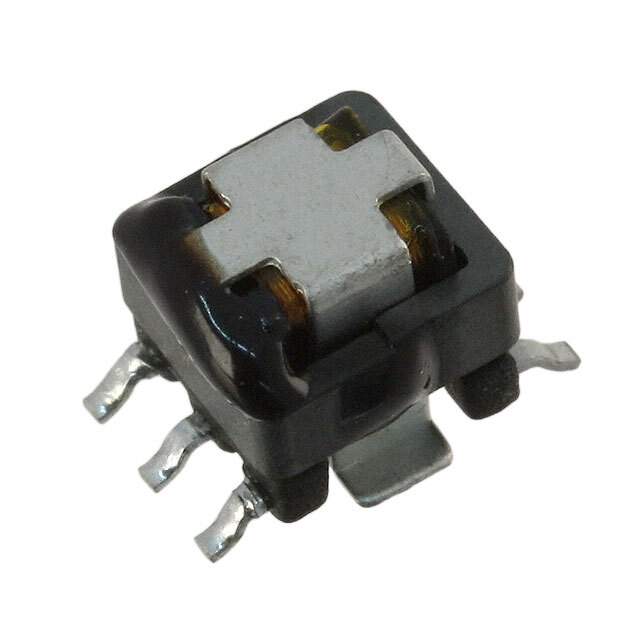

PA1005.100NLT Real Image
Same model may have multiple batches, images only for reference.

PA1005.100NLT

Part No PA1005.100NLT
Manufacturer Pulse
Catalog Current Sense Transformers
Description XFRMR CURR SENSE 2.0MH 1:100 SMD
Datasheet
PA1005.100NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Frequency Range 50kHz to 1MHz
Type Invasive
Current Rating 20A
Inductance 2mH
DC Resistance (DCR) 0.75 mOhm Primary, 5.5 Ohm Secondary
Mounting SMD (SMT)
Height - Seated (Max) 0.217" (5.50mm)
Termination Style Gull Wing
Weight 0.014 oz (0.4g)
Win Source Part Number 1086231-PA1005.100NLT
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PA1005.100NLT CAD Model

Description

The Pulse Electronics Corporation Invasive Transformer is a high-performance transformer designed for use in electronic circuits.

  • Current: 20A
  • Inductance: 2mH
  • Termination Style: Gull Wing
  • Mounting: SMD (SMT)
  • Frequency Range: 50kHz to 1MHz
  • Weight: 0.014 oz (0.4g)
  • Category: Transformers
  • DC Resistance (DCR): 0.75 mOhm Primary, 5.5 Ohm Secondary
  • Supply and Demand Status: Balanced
