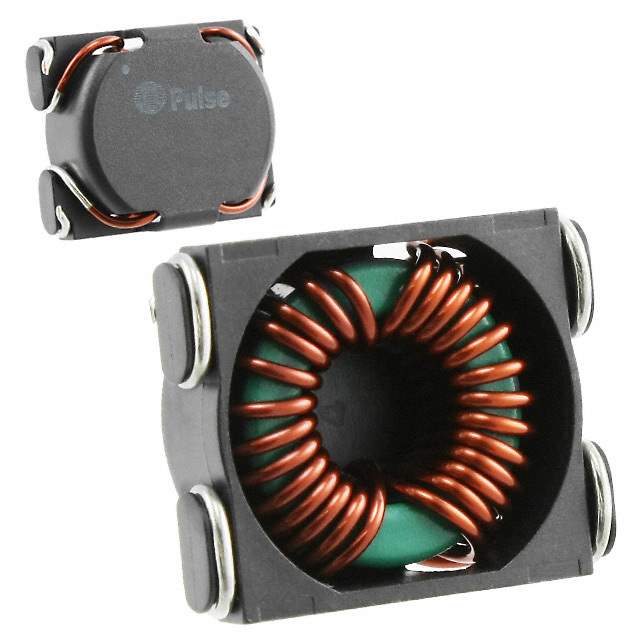

P0469NLT Real Image
Same model may have multiple batches, images only for reference.

P0469NLT

Part No P0469NLT
Manufacturer Pulse
Catalog Common Mode Chokes
Description CMC 11.6A 2LN SMD
Datasheet
P0469NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 15 Weeks
Features 2 Line Common Mode Choke Surface Mount 11.6A DCR 10mOhm
Manufacturer Pulse
Package Reel - TR
Operating Temperature Range -40°C ~ 120°C
Mounting Surface Mount
Package Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number 553-1938-2, P0469NLT-ND, 553-1938-1, 553-1938-6
Quantity per package 75
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 888258-P0469NLT
Ultra Librarian 3D Model Ultra Librarian P0469NLT CAD Model

Description

The Pulse 888258-P0469NLT is a 2 Line Common Mode Choke Surface Mount with a 10mOhm DCR.

  • Operating Temperature: -40°C to 120°C
  • Package: Horizontal with 4 PC pads
  • Category: Filter
  • ECCN: EAR99
  • Supply and Demand Status: Limited
  • Pieces per Package: 75
  • MSL Level: 1 (Unlimited)
  • Estimated Production Lead Time: 15 weeks
  • REACH: Unaffected
  • HTSUS: 8548.90.0100
  • Other Part Numbers: 553-1938-2, P0469NLT-ND, 553-1938-1, and 553-1938-6
