Same model may have multiple batches, images only for reference.

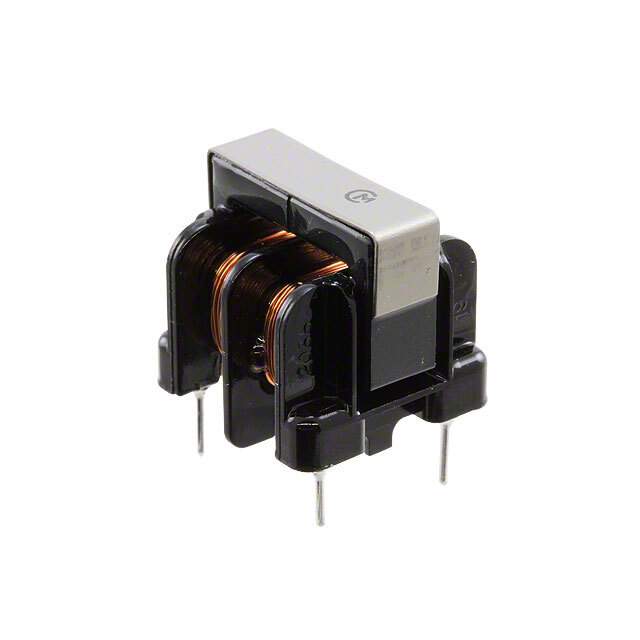

PLA10AN1522R0R2B Real Image
Same model may have multiple batches, images only for reference.

PLA10AN1522R0R2B

Part No PLA10AN1522R0R2B
Manufacturer Murata Electronics North America
Catalog Common Mode Chokes
Description CMC 2A 2LN TH
Datasheet
PLA10AN1522R0R2B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 3000001297-PLA10AN1522R0R2B
Manufacturer Murata Electronics
Category Filters -Common Mode Chokes
Series PLA10
Package Bulk
Product Status Obsolete
Filter Type Power Line
Number of Lines 2
Operating Temperature -25°C ~ 60°C
Mounting Type Through Hole
Package / Case Vertical, 4 PC Pin
Ultra Librarian 3D Model Ultra Librarian PLA10AN1522R0R2B CAD Model

Description

The PLA10 series common mode chokes from Murata Electronics are designed for power line filtering applications.

  • Package Type: Bulk
  • Mounting Type: Through Hole
  • Temperature Range: -25°C to 60°C
  • Product Status: Obsolete
  • Number of Lines: 2
