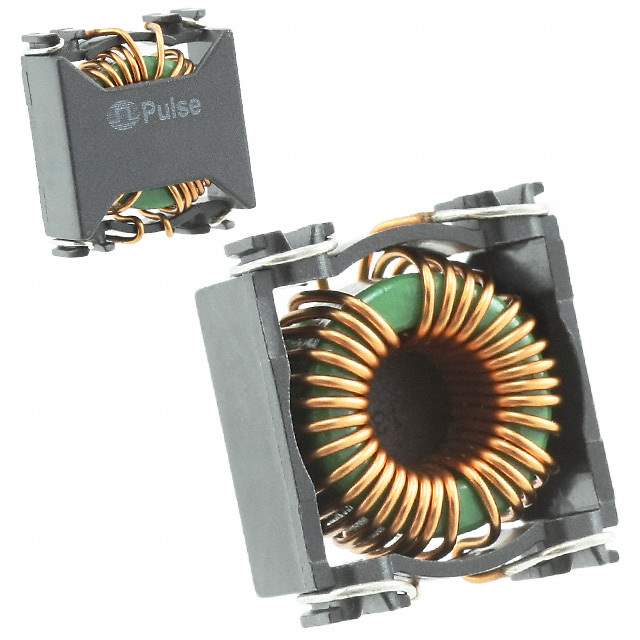

P0422T Real Image
Same model may have multiple batches, images only for reference.

P0422T

Part No P0422T
Manufacturer Pulse
Catalog Common Mode Chokes
Description COMMON MODE CHOKE 4.7A 2LN SMD
Datasheet
P0422T Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Filter Type Power Line
Number of Lines 2
Current Rating (Max) 4.7A
DC Resistance (DCR) (Max) 40 mOhm
Temperature Range - Operating -40°C to 120°C
Mounting SMD (SMT)
Height (Max) 0.390" (9.91mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 045433-P0422T
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian P0422T CAD Model

Description

The Pulse Electronics Corporation power line filter with a current rating of 4.7A and a maximum height of 0.390" (9.91mm) is an ideal choice for various electronic applications.

  • Mounting: SMD (SMT)
  • Dimension: 4 PC pad horizontal
  • DC Resistance (DCR): 40 mOhm Max
  • Operating Temperature Range: -40°C to 120°C
