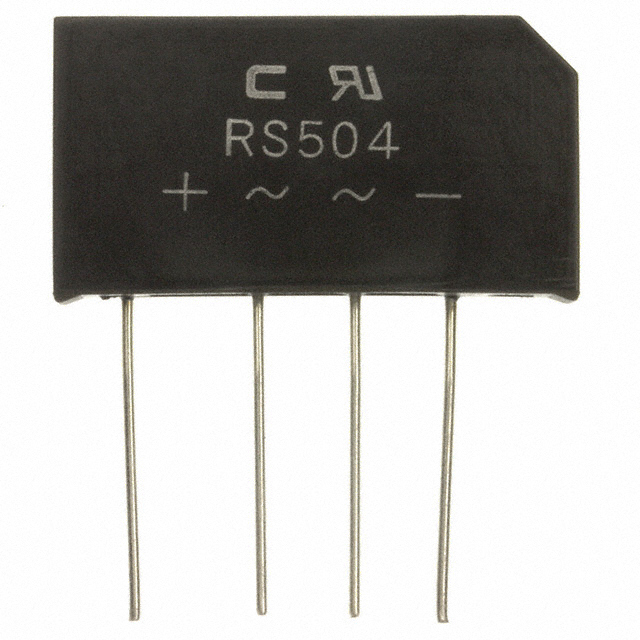

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600 V
Current - Average Rectified (Io) 1 A
Voltage - Forward (Vf) (Max) @ If 1.05 V @ 500 mA
Current - Reverse Leakage @ Vr 10 µA @ 600 V
Temperature Range - Operating 150°C (TJ)
Mounting Type Through Hole
Case / Package 4-SIP, DBF
Package Bulk
Supply and Demand Status Normal
Win Source Part Number 1490995-DBF10TG
Ultra Librarian 3D Model Ultra Librarian DBF10TG CAD Model
