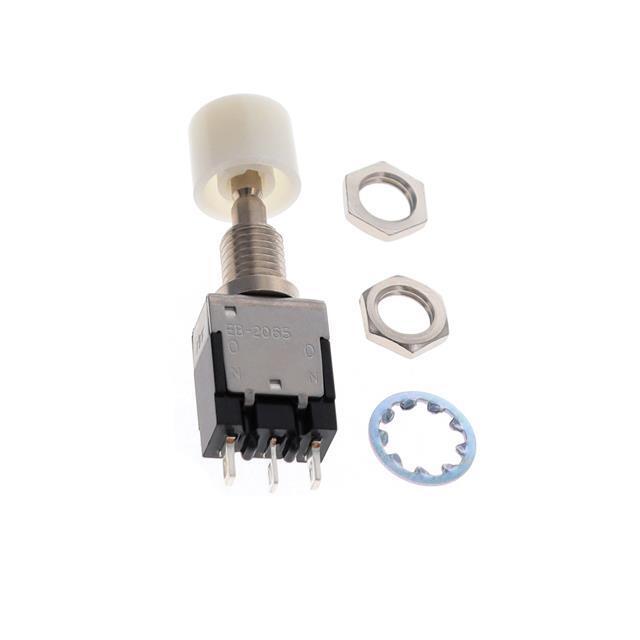

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 10A (AC)
Voltage Rating - AC 125 V
Actuator Type Push-Pull Plunger
Mounting Type Panel Mount, Snap-In
Termination Style Quick Connect - 0.187" (4.7mm)
Features Pull On Lock
Operating Force 425gf
Operating Position 0.610" (15.5mm)
Pretravel 0.125" (3.2mm)
Differential Travel 0.045" (1.1mm)
Overtravel 0.100" (2.54mm)
Electrical Life 6,000 Cycles
Temperature Range - Operating -40°C ~ 85°C
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1556824-E69-30A
Ultra Librarian 3D Model Ultra Librarian E69-30A CAD Model
