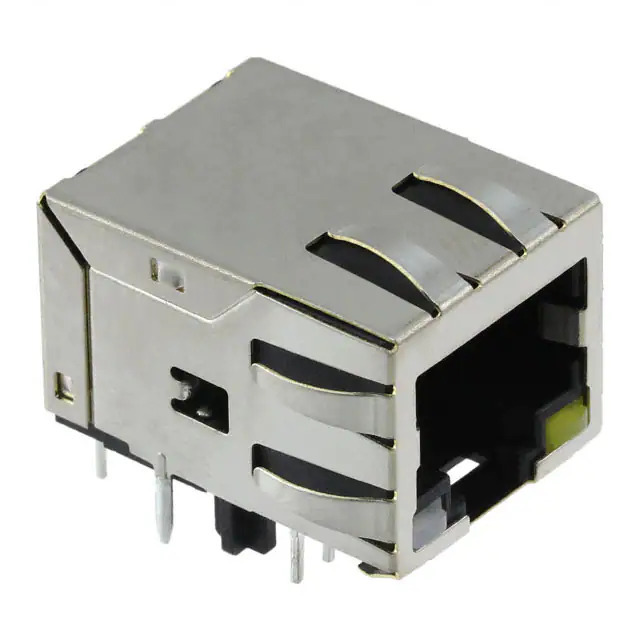

JKM-0201NL Pulse
Same model may have multiple batches, images only for reference.

JKM-0201NL

Part No JKM-0201NL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 1PORT 100 BASE-TX PCB / 1 Port RJ45Through Hole 10/100 Base-TX, AutoMDIX, Power over Ethernet (PoE)
Datasheet
JKM-0201NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Modular Connectors - Modular Connector Jacks With Magnetics
Mfr Pulse Electronics
Series PULSEJACK™ JKM
Package Tray
Product Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-TX, AutoMDIX, Power over Ethernet (PoE)
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.545" (13.84mm)
LED Color Green - Yellow
Number of Cores per Jack 6
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Down
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness 15.0µin (0.38µm)
Shield Material Copper Alloy
Housing Material Thermoplastic
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1362674-JKM-0201NL
Ultra Librarian 3D Model Ultra Librarian JKM-0201NL CAD Model

Description

The 1362674-JKM-0201NL is a modular connector jack with magnetics designed for use in electronic devices. Manufactured by Pulse Electronics, this connector is part of the Connectors, Interconnects - Modular Connectors - Modular Connector Jacks With Magnetics category.

  • Packaging: Tray
  • Lifecycle Status: Active
  • Temperature Range: 0°C to 70°C
  • Mounting Type: Through-hole
  • Shielding: Shielded and EMI finger
  • Compatibility: 10/100 Base-TX, AutoMDIX, and Power over Ethernet (PoE) applications
