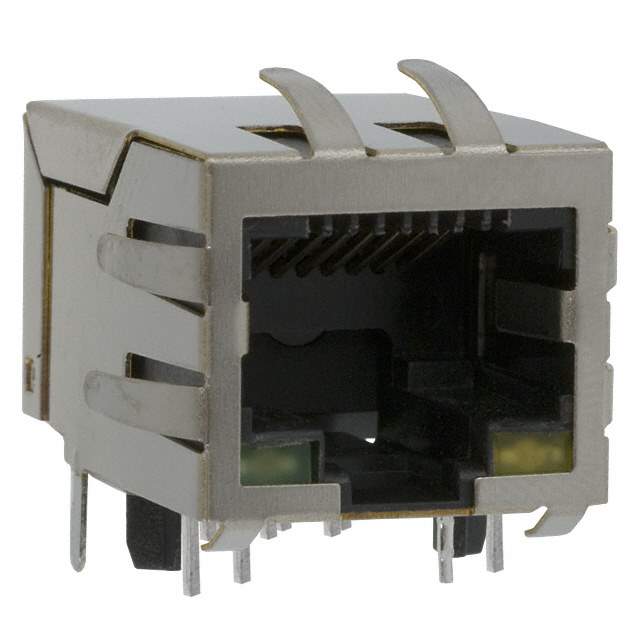

J0026D21B Real Image
Same model may have multiple batches, images only for reference.

J0026D21B

Part No J0026D21B
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 1PORT 100 BASE-TX PCB / 1 Port RJ45Through Hole 10/100 Base-TX
Datasheet
J0026D21B Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors>Modular Connector Jacks With Magnetics
Manufacturer Pulse Electronics
Packaging Bulk
Product Status Obsolete
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-TX
Mounting Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.545" (13.84mm)
LED Color Green - Yellow
Number of Cores per Jack 5
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Down
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness 15.0µin (0.38µm)
Shield Material Brass
Housing Material Thermoplastic
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 553-1240
Standard Package 25
Win Source Part Number 1333882-J0026D21B
Ultra Librarian 3D Model Ultra Librarian J0026D21B CAD Model

Description

The Pulse Electronics J0026D21B is a modular connector jack with magnetics, featuring board guide, RJ45 connector type, and solder termination.

  • Contact Finish: Gold
  • Contact Finish Thickness: 15.0µin (0.38µm)
  • Contact Material: Phosphor bronze
  • Height Above the Board: 0.545" (13.84mm)
  • Shielding: Shielded, EMI finger
  • Housing Material: Thermoplastic
  • Suitable For: 10/100 Base-TX applications
  • Orientation: 90° angle (right)
  • Number of Ports: 1
  • Standard Package: 25
  • Mounting Type: Through-hole
  • LED Color: Green-yellow
  • Number of Cores per Jack: 5
  • Tab Direction: Down
  • Shield Material: Brass
  • Temperature Range: 0°C ~ 70°C
  • Status: Obsolete
  • RoHS Compliant: No
