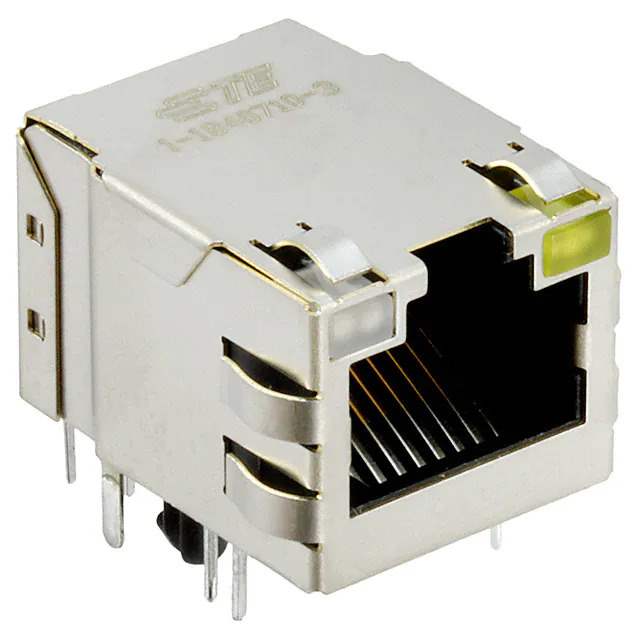

1-1840710-3 Real Image
Same model may have multiple batches, images only for reference.

1-1840710-3

Part No 1-1840710-3
Manufacturer TRP Connector B.V.
Catalog Modular Connectors
Description CONN JACK 1PORT 1000 BASE-T / 1 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Modular Connectors - Modular Connector Jacks With Magnetics
Mfr TRP Connector B.V.
Series Mag45
Package Tray
Product Status Obsolete
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100/1000 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.555" (14.10mm)
LED Color Green, Orange - Yellow
Number of Cores per Jack 12
Shielding Shielded, EMI Finger
Features Board Lock
Tab Direction Up
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating -40°C ~ 85°C
Contact Finish Thickness 50.0µin (1.27µm)
Shield Material Brass
Housing Material Polyethylene Terephthalate (PET), Polyester
Standard Package 63 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 853777-1-1840710-3
Ultra Librarian 3D Model Ultra Librarian 1-1840710-3 CAD Model

Description

The 853777-1-1840710-3 is a modular connector jack with magnetics from the Mag45 series. TRP Connector B.V. is the manufacturer.

  • Series: Mag45
  • Features: Board Lock
  • Type: RJ45
  • Rows: Single
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 50.0µin (1.27µm)
  • Package: Tray
  • Contact Material: Phosphor Bronze
  • Height Above Board: 0.555" (14.10mm)
  • Shielded: EMI Finger
  • Housing Material: Polyethylene Terephthalate (PET), Polyester
  • Applications: 10/100/1000 Base-T, AutoMDIX
  • Orientation: 90° Angle
  • Ports: Single
  • LED Color: Green and Orange-Yellow
  • Cores Per Jack: 12
  • Tab Direction: Up
  • Shield Material: Brass
  • Mounting: Through Hole
  • Operating Temperature: -40°C to 85°C
